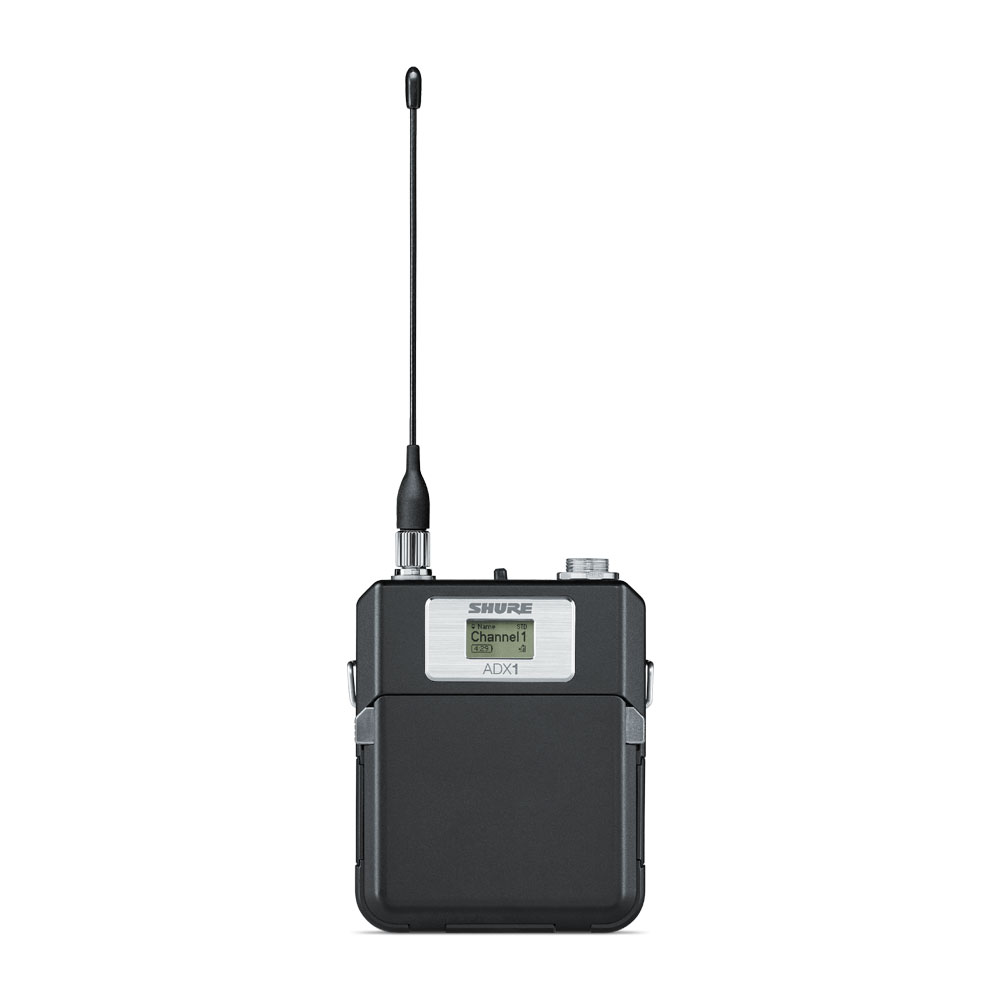

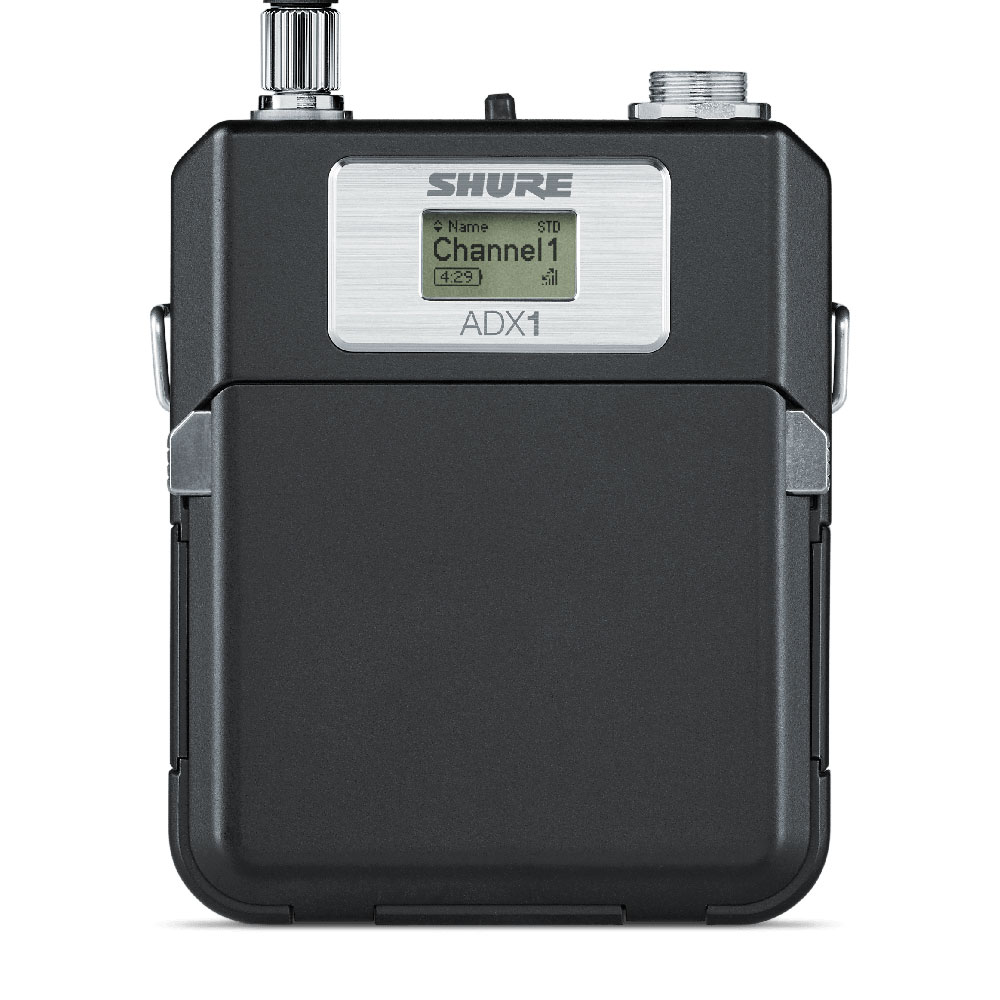

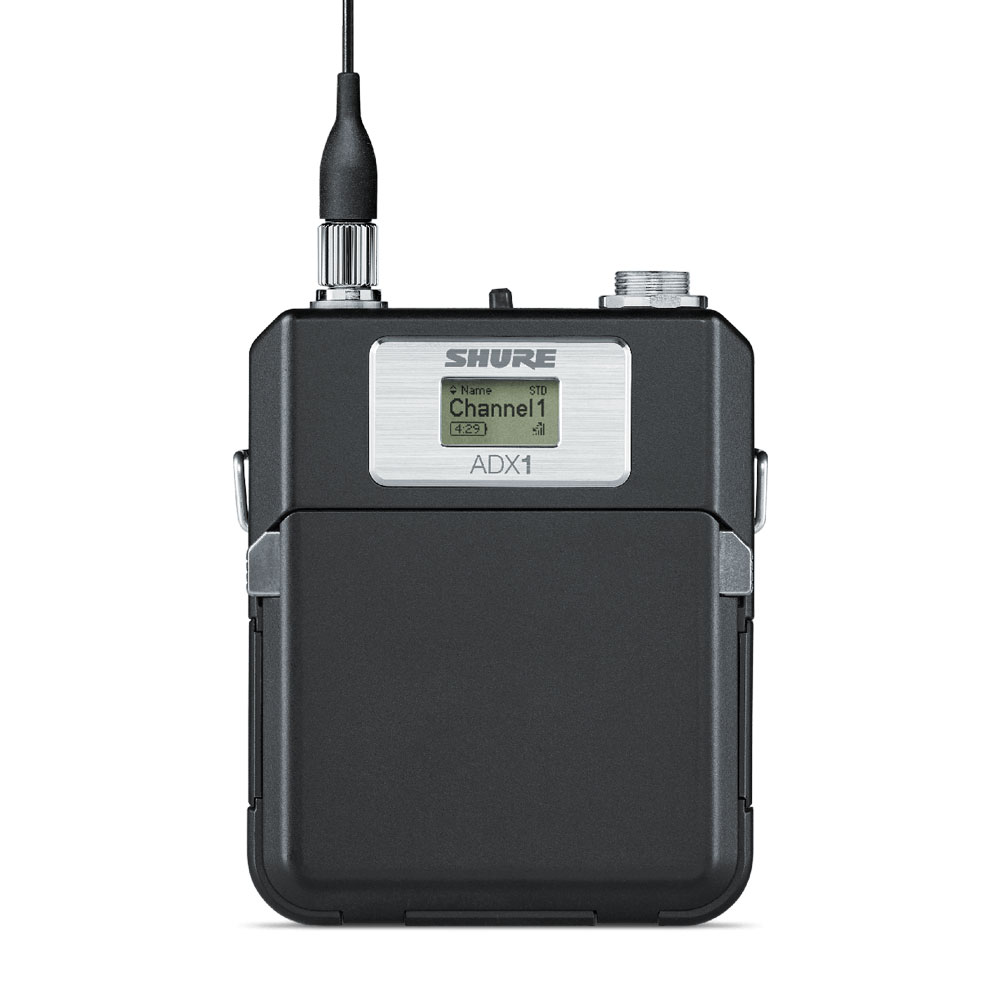

Shure ADX1 Axient Digital Wireless Bodypack Transmitter

CALL FOR PRICE (£0.00 Exc. VAT)
Out of stock
Shure ADX1 Axient Digital Wireless Bodypack Transmitter
Shure ADX1 Axient Digital Wireless Bodypack Transmitter
Shure ADX1 Axient Digital Wireless Bodypack Transmitter
Shure ADX1 Axient Digital Wireless Bodypack Transmitter
Shure ADX1 Axient Digital Wireless Bodypack Transmitter
Shure ADX1 Axient Digital Wireless Bodypack Transmitter

Shure ADX1 Axient Digital Wireless Bodypack Transmitter

CALL FOR PRICE (£0.00 Exc. VAT)

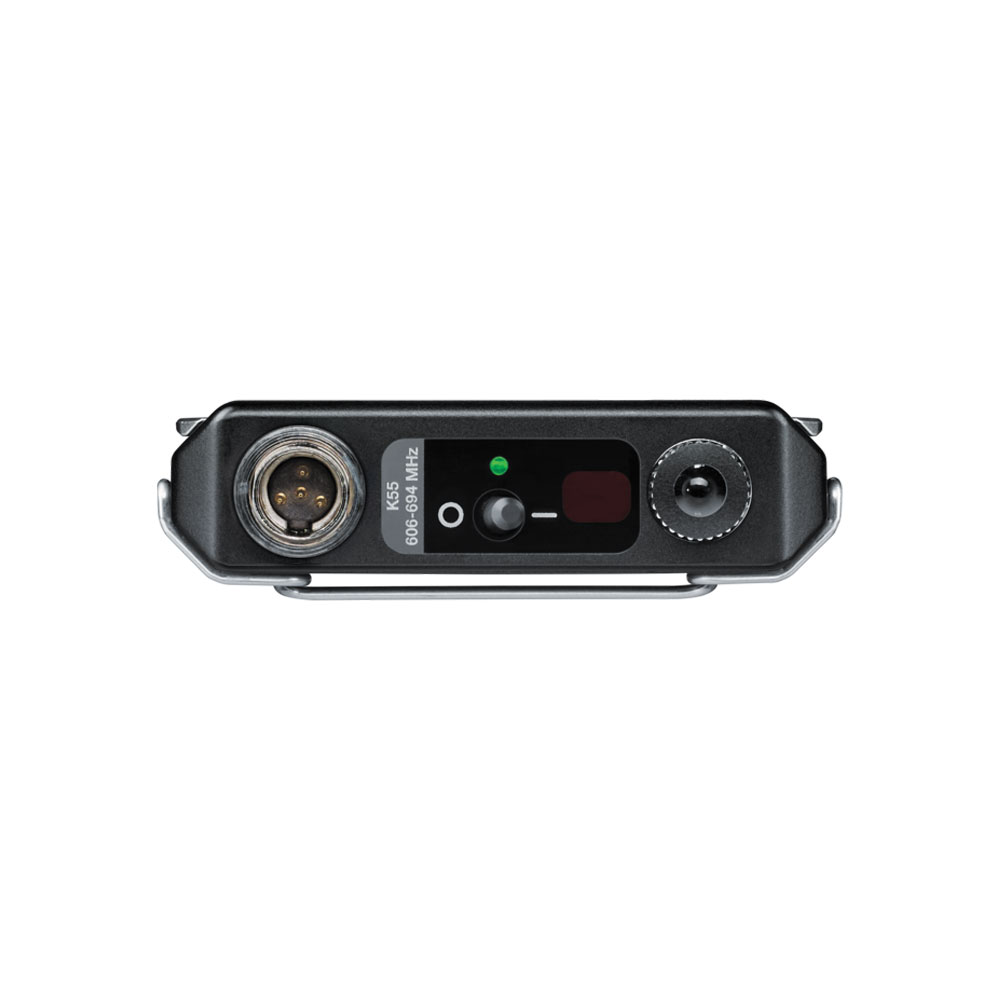

TA4

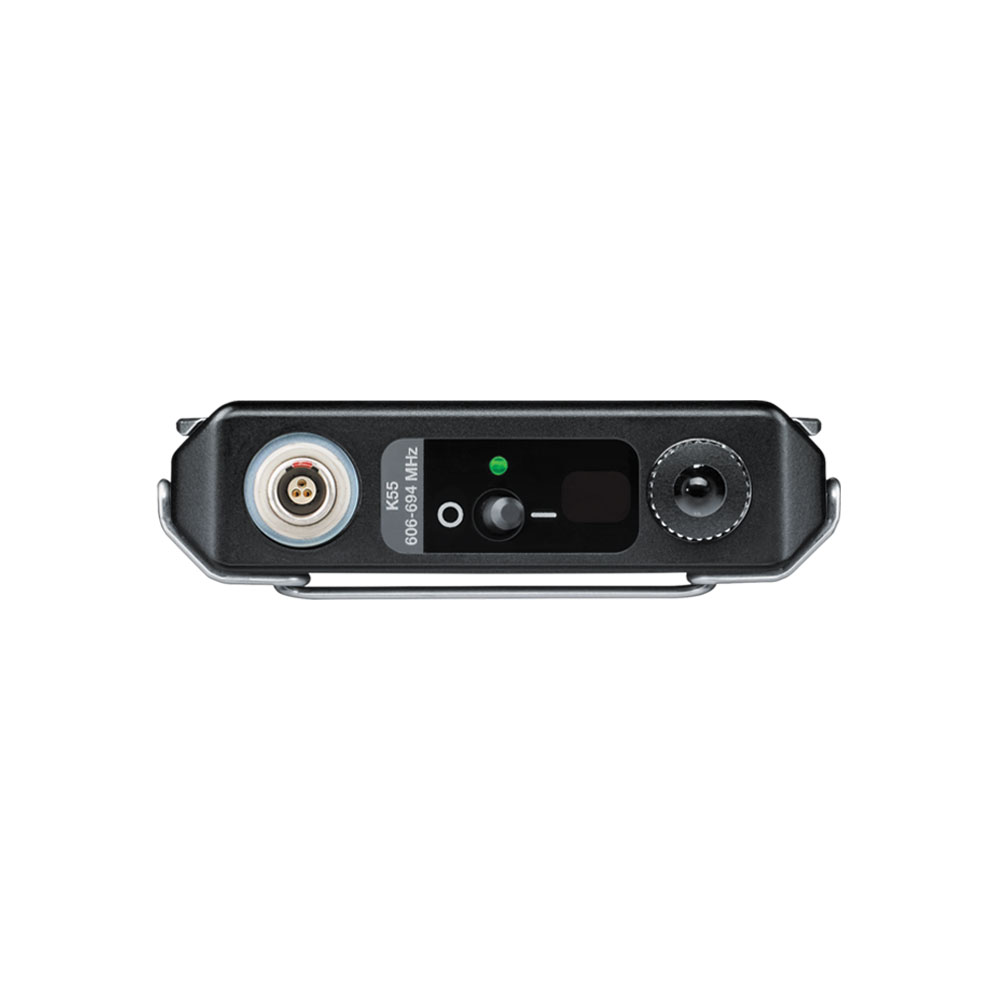

3-Pin Lemo
470 - 636 MHz
606 - 694 MHz
Out of stock
Brand: ShureModel: ADX1=-G56
+
Key Features:
  • Removable antenna and fully concealed buttons and switch
  • Advanced control menu with powerful features
  • Durable, moisture-resistant, lightweight metal case
  • Up to 10 hours of runtime with SB910 rechargeable battery
See More...
S-SHU-ADX1-G56-TA4
Information

Shure ADX1 Axient Digital Wireless Bodypack Transmitter

ADX1, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth. Includes two SB910 rechargeable batteries.

Features

  • Removable antenna and fully concealed buttons and switch
  • Two connector options: TA4 and LEMO3
  • Advanced control menu with powerful features
  • Durable, moisture-resistant, lightweight metal case
  • Up to 10 hours of runtime with SB910 rechargeable battery
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance

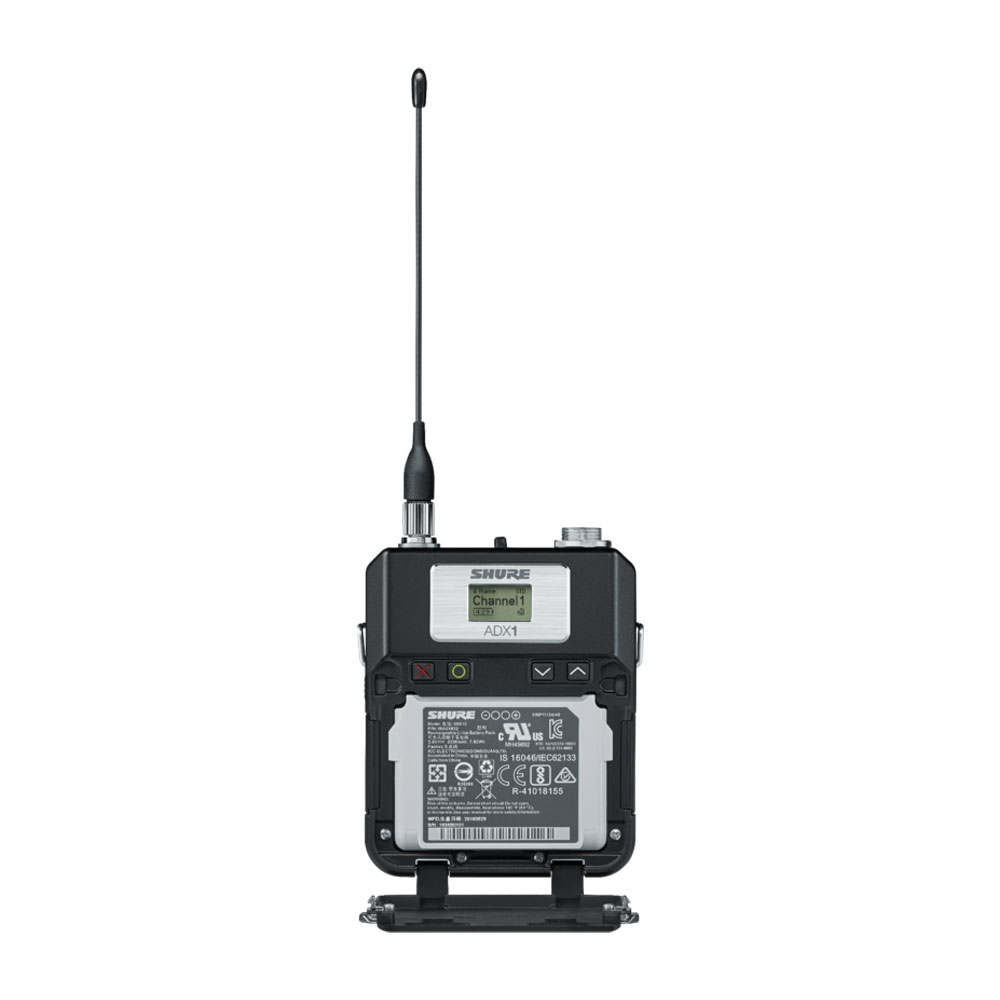

  • External contacts for docked charging
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission

The ADX1 is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Specifications

Specifications

RF
RF Carrier Frequency Range 470–960 MHz
Varies by Region. See Frequency Range and Output Power Table.
Working Range 100 m (330 ft)
Note: Actual range depends on RF signal absorption, reflection and interference.
RF Tuning Step Size 25 kHz
Varies by region.
Image Rejection >70 dB
typical
RF Sensitivity −98 dBm at 10−5 BER
AUDIO
Latency Standard mode: 2.08 ms
High Density mode: 2.96 ms
Audio Frequency Response 20 Hz–20 kHz (±1 dB)
Note: dependent on microphone type
Audio Dynamic Range
A-weighted, typical, System Gain @ +10
XLR Analog Output: 120 dB (A-weighted); 117 dB (unweighted)
AES3 Dante Digital Output: 130 dB (A-weighted); 126 dB (unweighted)
Total Harmonic Distortion
–6 dBFS input, 1 kHz, System Gain @ +10
<0.01%
System Audio Polarity Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output and the tip of the 6.35 mm (1/4-inch) output.
TEMPERATURE RANGE Note: Battery characteristics may limit this range.
Operating Temperature Range 0 to 122 °F (−18 °C to 50 °C)
Storage Temperature Range −20 to 149 °F (−29 °C to 65 °C)
NOTE: This Radio equipment is intended for use in musical professional entertainment and similar applications. This Radio apparatus may be capable of operating on some frequencies not authorized in your region. Please contact your national authority to obtain information on authorized frequencies and RF power levels for wireless microphone products.
