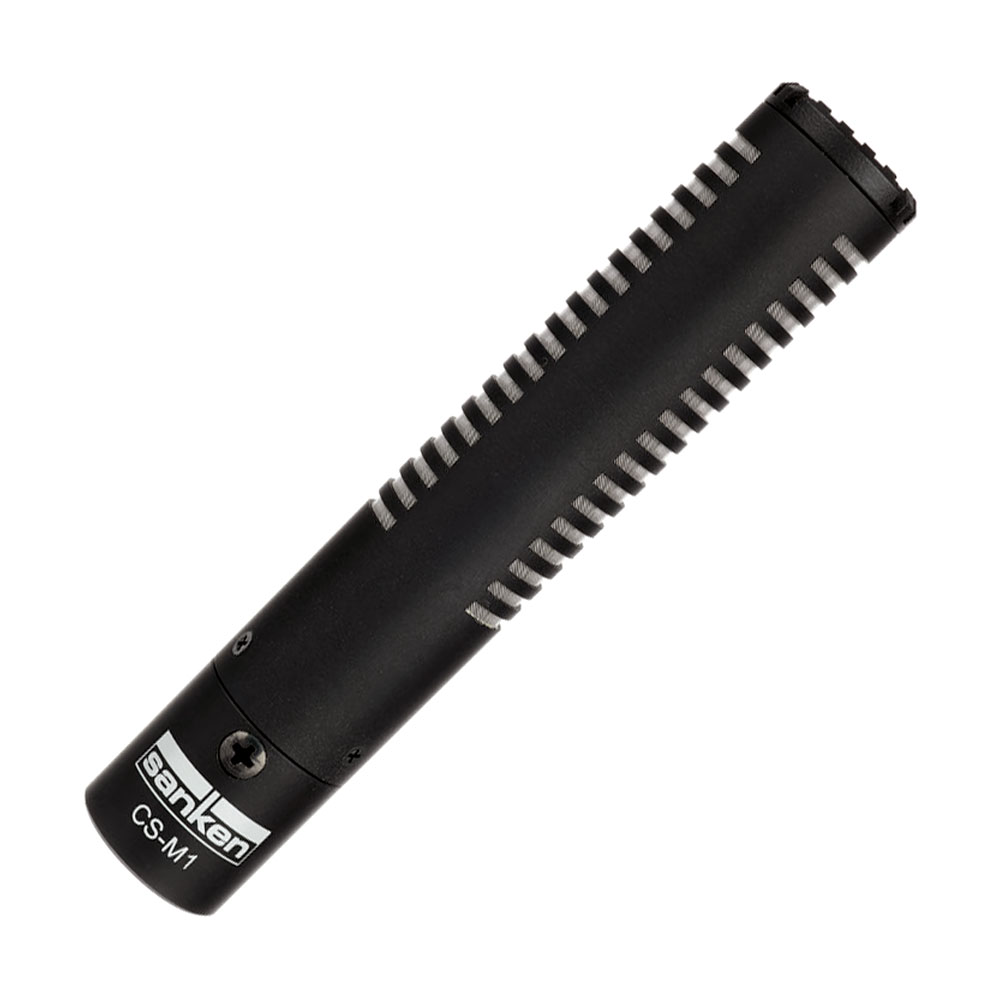

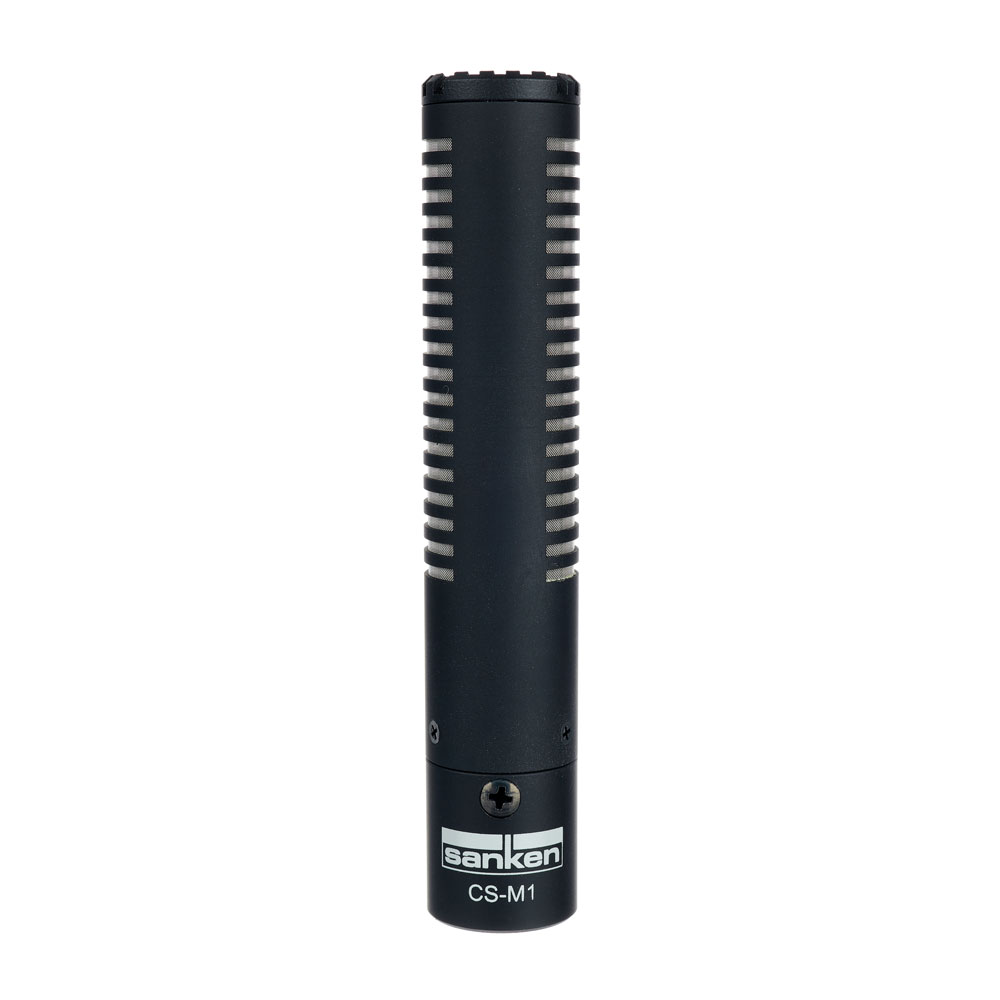

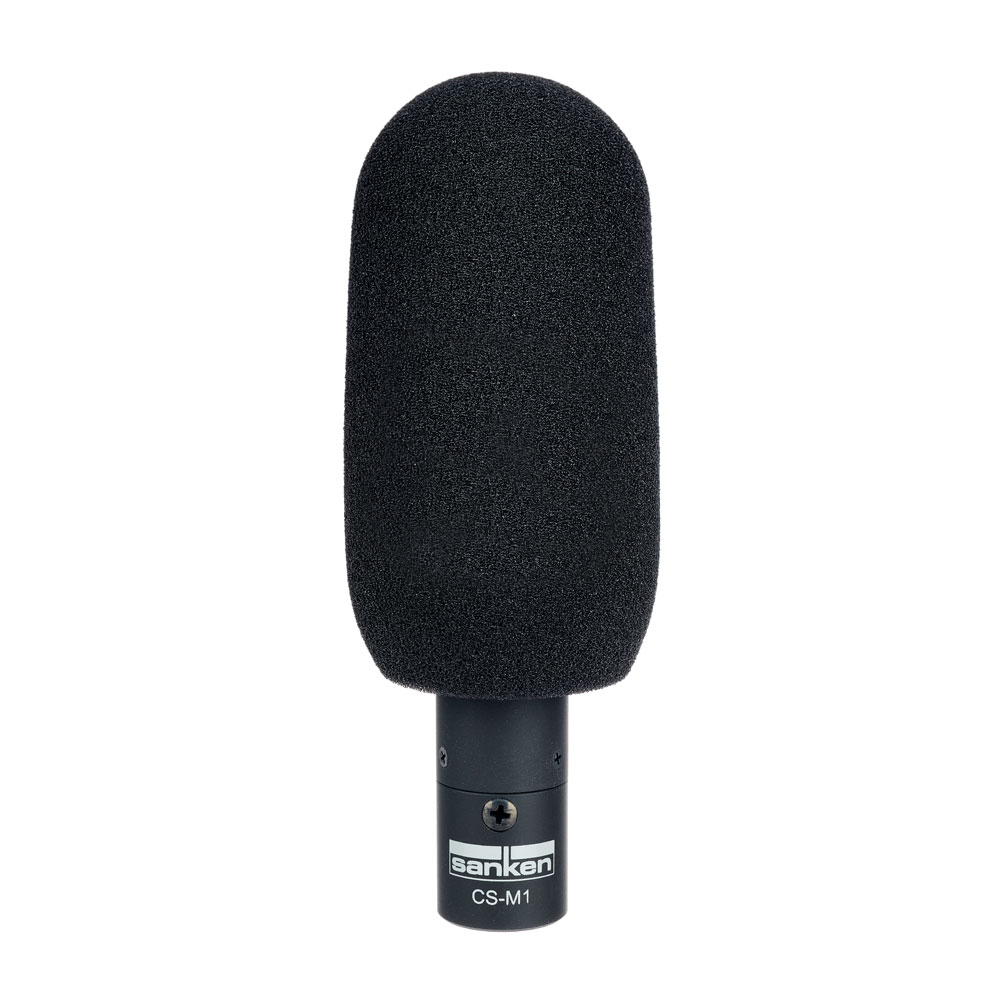

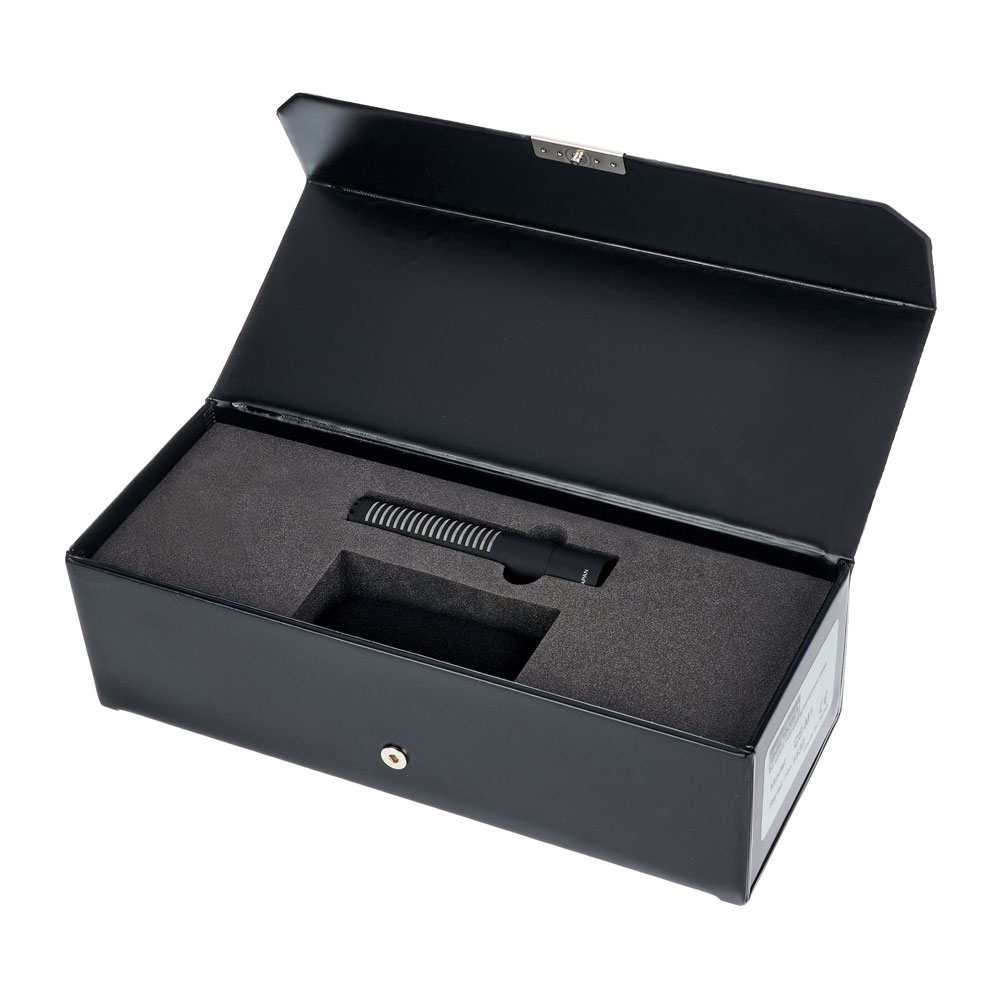

Sanken CS-M1 Mini Shotgun Microphone 4" Long

£729.00 (£607.50 Exc. VAT)
(RRP: £995.00) You save: £266.00!
In stock now
Sanken CS-M1 Mini Shotgun Microphone 4'' Long
Sanken CS-M1 Mini Shotgun Microphone 4'' Long
Sanken CS-M1 Mini Shotgun Microphone 4'' Long
Sanken CS-M1 Mini Shotgun Microphone 4'' Long
Sanken CS-M1 Mini Shotgun Microphone 4'' Long
Sanken CS-M1 Mini Shotgun Microphone 4'' Long

Sanken CS-M1 Mini Shotgun Microphone 4" Long

£729.00 (£607.50 Exc. VAT)
(RRP: £995.00) You save: £266.00!
In stock now
Brand: SankenModel: CS-M1
+
Key Features:
  • Unique Sanken lightweight design
  • Sharp directivity with clear sound
  • Short 4″ length, lightweight (less than 2oz) for easy operation
  • Ideal for boom pole operation on drama and film shoots
See More...
S-SAN-CS-M1
Information

Sanken CS-M1 4" Long Super Cardioid Mini Shotgun Microphone

The CS-M1 is the latest addition to the Sanken Production microphone range and sets new standards of sound quality for a short shotgun mic. From professional boom pole drama and film location recording to DSLR camera mounted applications, the CS-M1 delivers pristine quality audio with sharp directivity.

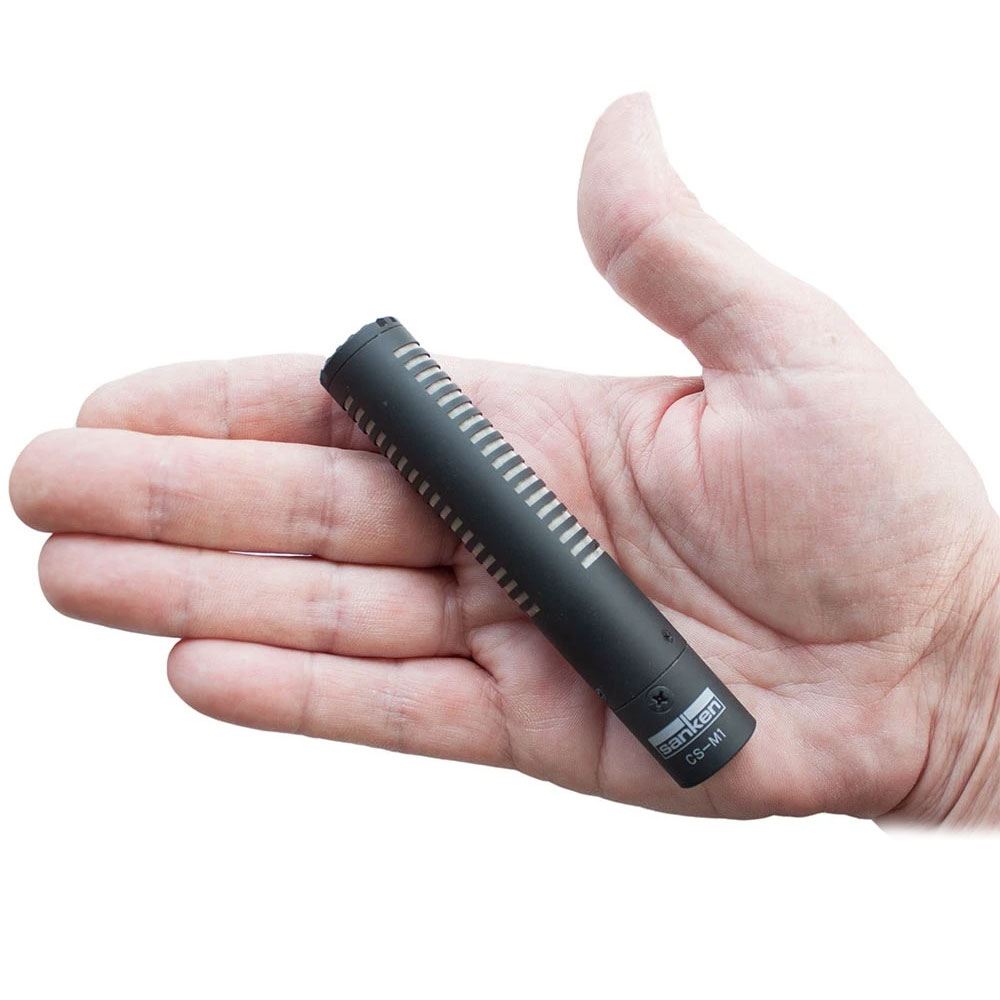

At only 4” in length and weighing less than 2 oz., the unobtrusive CS-M1 can be used in tight mic situations to faithfully capture the story. Like all Sanken shotguns it is rugged and dependable with a wide range of applications where sound clarity and noise rejection are critical requirements.

Features

  • Unique Sanken lightweight design
  • Sharp directivity
  • Clear sound
  • Short 4″ length, lightweight (less than 2oz) for easy operation
  • Ideal for boom pole operation on drama and film shoots
  • Ideal for mounting on cameras with short lens
  • Suitable for ENG applications
  • Standard 19 mm diameter
  • Advanced RFI rejection
  • Wide 70Hz – 20kHz frequency range
  • Rugged and dependable design

Capture the Story

The CS-M1’s lightweight, rugged design and unique components assure optimum resistance to humidity and adverse temperature changes.

The mic is especially suited to shoots where tight patterns and premium sound are the goal. It can be camera mounted without interfering with even a short lens, yet still provide the quality of audio demanded by today’s professionals, all at an affordable price.

Specifications

Specifications

Model Name CS-M1
Transducer Back Electret Condenser
Directivity Super Cardioid / lobar
Frequency response (70Hz – 20kHz)
Sensitivity (at 1kHz) 79mV/Pa (-22dB, 0dB=1V/Pa)
Equivalent noise level (A weighted) 16dB SPL
Max SPL (1% THD) 137dB SPL
Output impedance( 1kHz ) 140 ohms
Powering +48V±4V Phantom Powering
Current consumption 4mA
Weight 1.9oz (55g)
Dimensions 4.1″ (103mm) length
0.75″ (19mm) diam.
Surface finish Matte Black

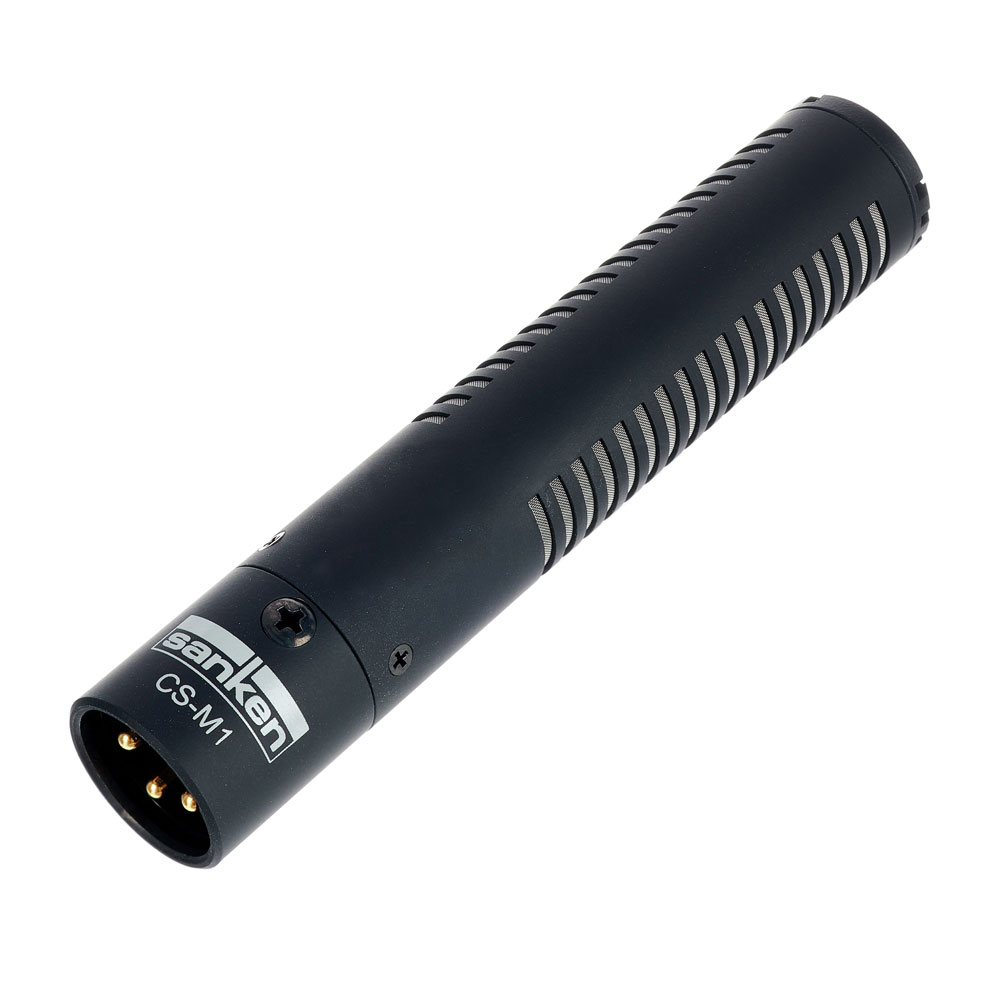

Connector XLR-3-12C(M) equivalent
1: GND, 2: Hot, 3: Cold

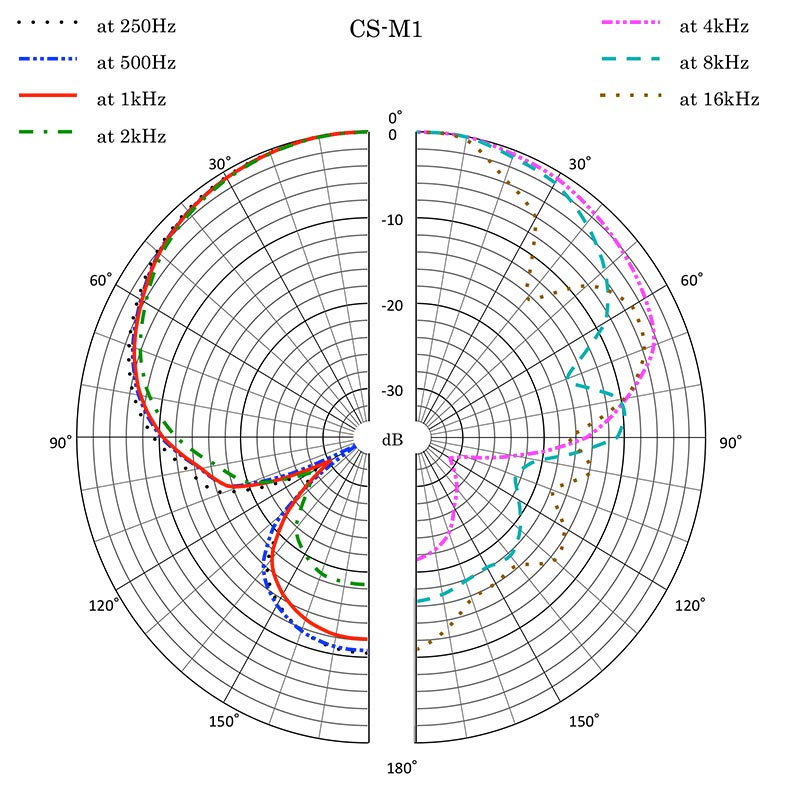

Polar Pattern

Dimensions

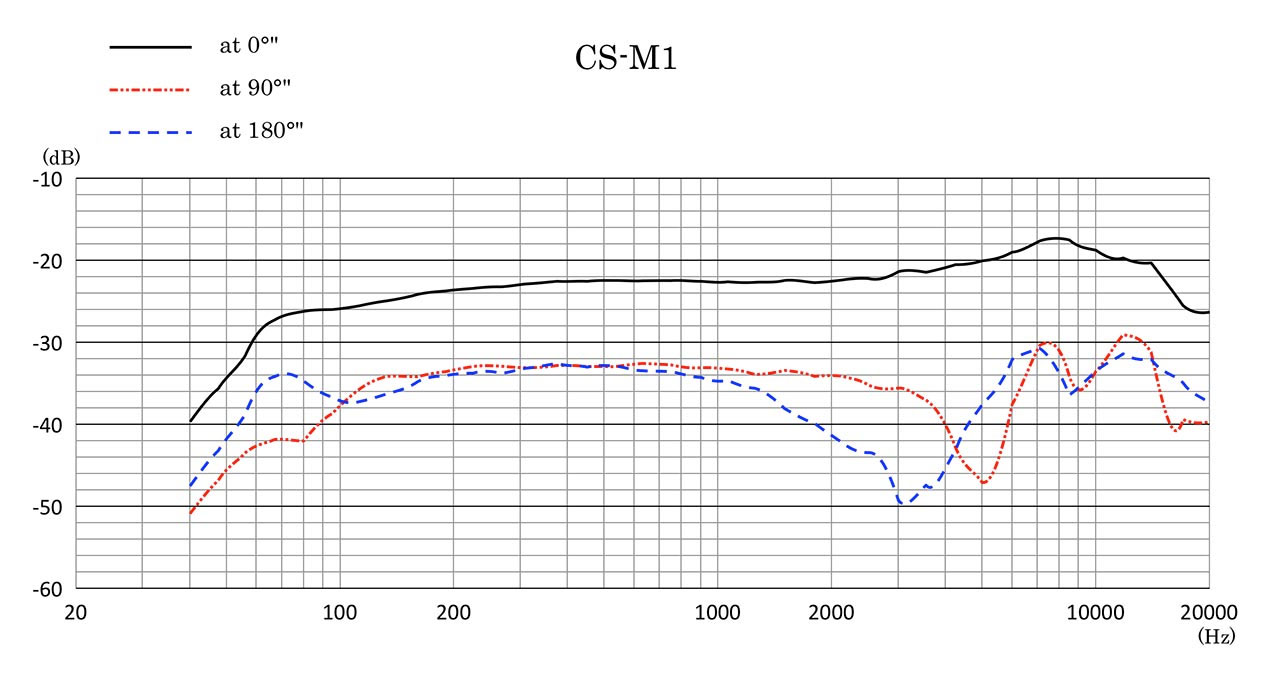

Frequency Response
