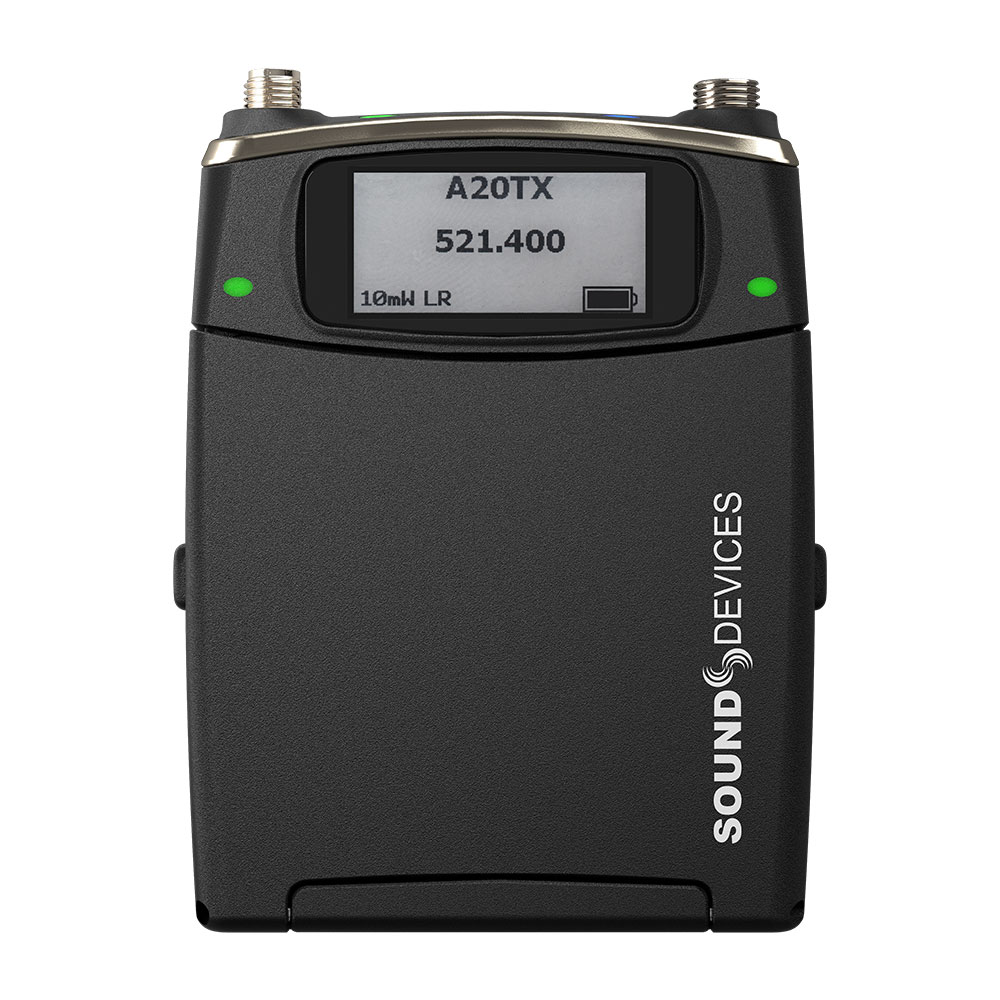

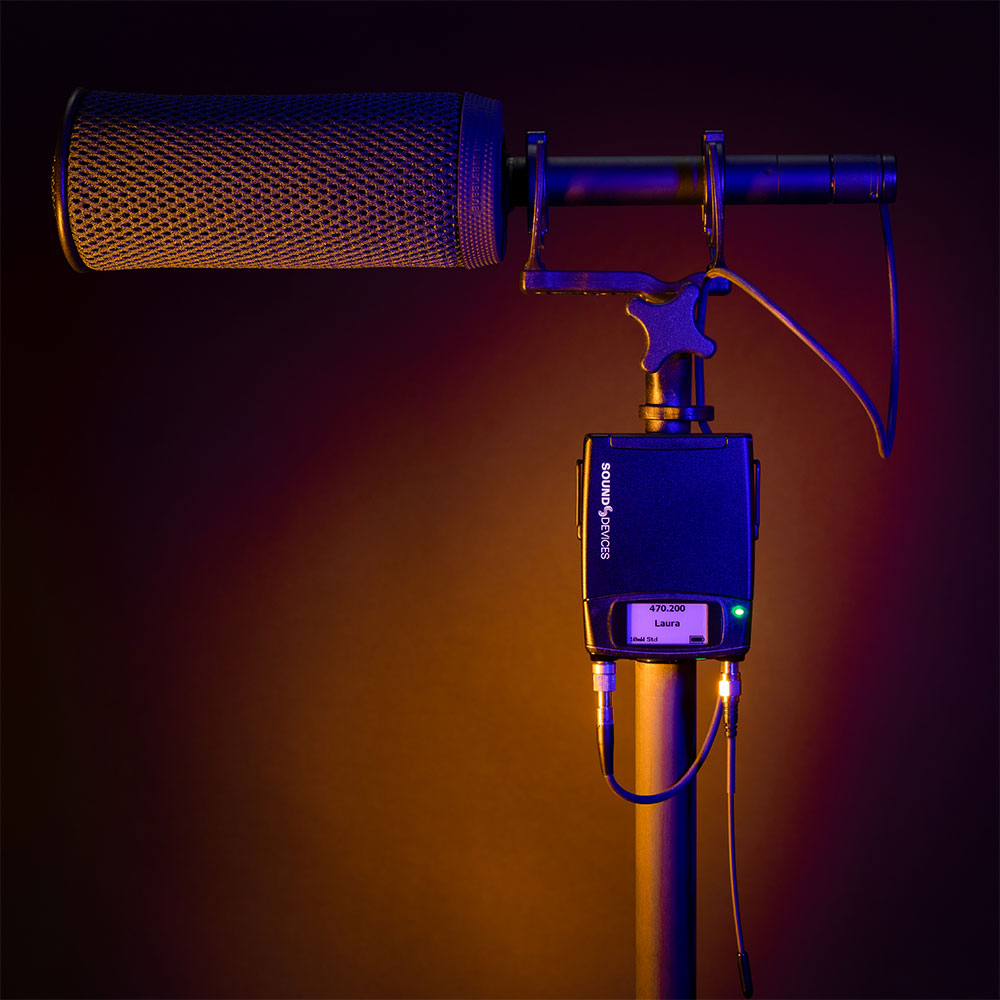

Sound Devices A20-TX Digital Wireless Transmitter

£2,712.00 (£2,260.00 Exc. VAT)
In stock now
Sound Devices A20-TX Digital Wireless Transmitter
Sound Devices A20-TX Digital Wireless Transmitter
Sound Devices A20-TX Digital Wireless Transmitter
Sound Devices A20-TX Digital Wireless Transmitter
Sound Devices A20-TX Digital Wireless Transmitter
Sound Devices A20-TX Digital Wireless Transmitter
Sound Devices A20-TX Digital Wireless Transmitter
Sound Devices A20-TX Digital Wireless Transmitter

Sound Devices A20-TX Digital Wireless Transmitter

£2,712.00 (£2,260.00 Exc. VAT)
In stock now
Brand: Sound DevicesModel: 9808
+
Key Features:
  • Worldwide VHF and UHF tuning range from 169 - 1525 MHz
  • Up to 12 hours battery runtime with built-in battery charger via USB-C
  • Eco-friendly operation from rechargeable Lithium batteries or from standard AAs
  • State-of-the-art 100% digital long-range modulation
See More...
S-SDV-A20-TX
Information

What's In The Box:


1 x A20-TX Transmitter
3 x Whip Antennas with Caps
   (2 x Short. 1 x Long, Uncut)

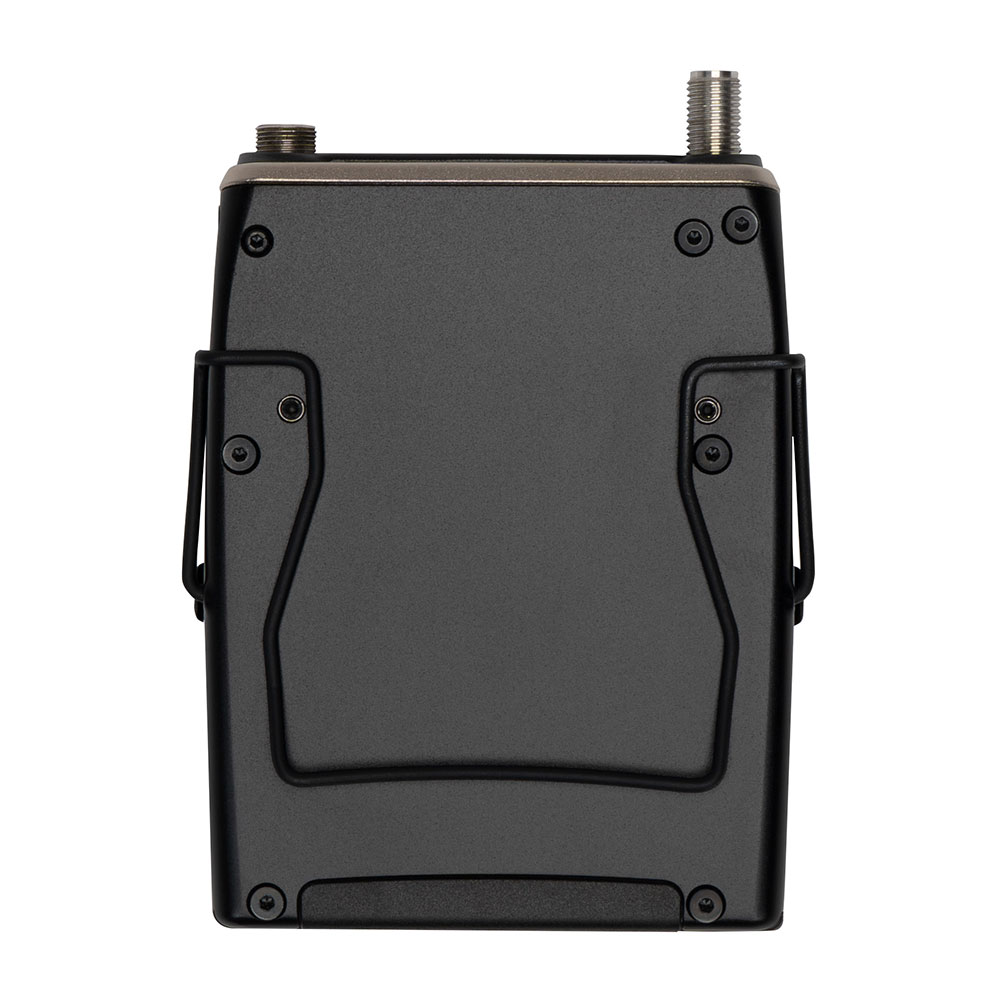

1 x Metal Belt Clip
1 x Rubber Cap for USB-C Port

Sound Devices A20-TX Digital Wireless Transmitter

A Kaleidoscope of Connectivity

Finding a tool that can serve multiple purposes is the goal of every audio professional. More flexible gear means less – less for you to carry in a bag or fit in a case, and less gear to rent for a gig. That’s the philosophy behind the A20-TX digital wireless transmitter. Sound Devices engineered it to be compatible with more input sources than any other transmitter, including two- or three-wire lavs, dynamic mics, phantom-powered condenser mics, guitars, balanced line-level sources, and even AES digital mics. The A20-TX transmitter’s multipurpose input saves you from having to pack or rent more transmitters.

True Balanced Input

The Sound Devices A20-TX transmitter includes an industry first: a full, true balanced ultra-low-noise, high-headroom mic preamp. In fact, this is the same preamp built into Sound Devices’ vaunted 8-Series mixers. The A20-TX mic preamp is a big step up from the excellent mic preamp built into the original A10-TX transmitter in terms of noise, headroom, and sonic purity.

Excellent Battery Life

The A20-TX transmitter features battery life of up to 12 hours. Additionally, the A20-TX’s flexible powering scheme allows the use of many battery types, including standard alkaline or NiMh AA batteries, rechargeable Li-Ion batteries, rechargeable LiFePO4 batteries, or even USB battery packs.

Advanced Features The A20-TX transmitter boasts industry-leading features like Sound Devices’ proprietary NexLink 2.4 GHz long-range wireless remote control technology that allows multiple A20-TX transmitters to be controlled and timecode synced dependably from an A20-Nexus or A20-Nexus Go digital receiver. NexLink works over long distances – even through Wi-Fi, Bluetooth, and other 2.4 GHz interference. The A20-TX transmitter’s long-range modulation achieves excellent operational range. The A20-TX also includes Sound Devices’ proprietary SpectraBand technology, which enables the A20-TX transmitter to tune over a super wide range of 169-1525 MHz.

A20-TX Switch 

For the applications that call for a user-actuated switch, the A20-TX transmitter features the industry’s first physically removable switch. Its large size, positive tactile operation, and magnetic activation give users ultimate confidence and reliability.

GainForward With GainForward, there is no gain setting on the transmitter! You control your A20-TX transmitter’s audio gain, either directly at the mixer’s digital trim control or at the wireless receiver, while maintaining the best audio performance in the industry. If the source is too soft or too loud, just use a downstream mixer’s digital trim gain control to make adjustments. No more bothering the talent to make gain changes.

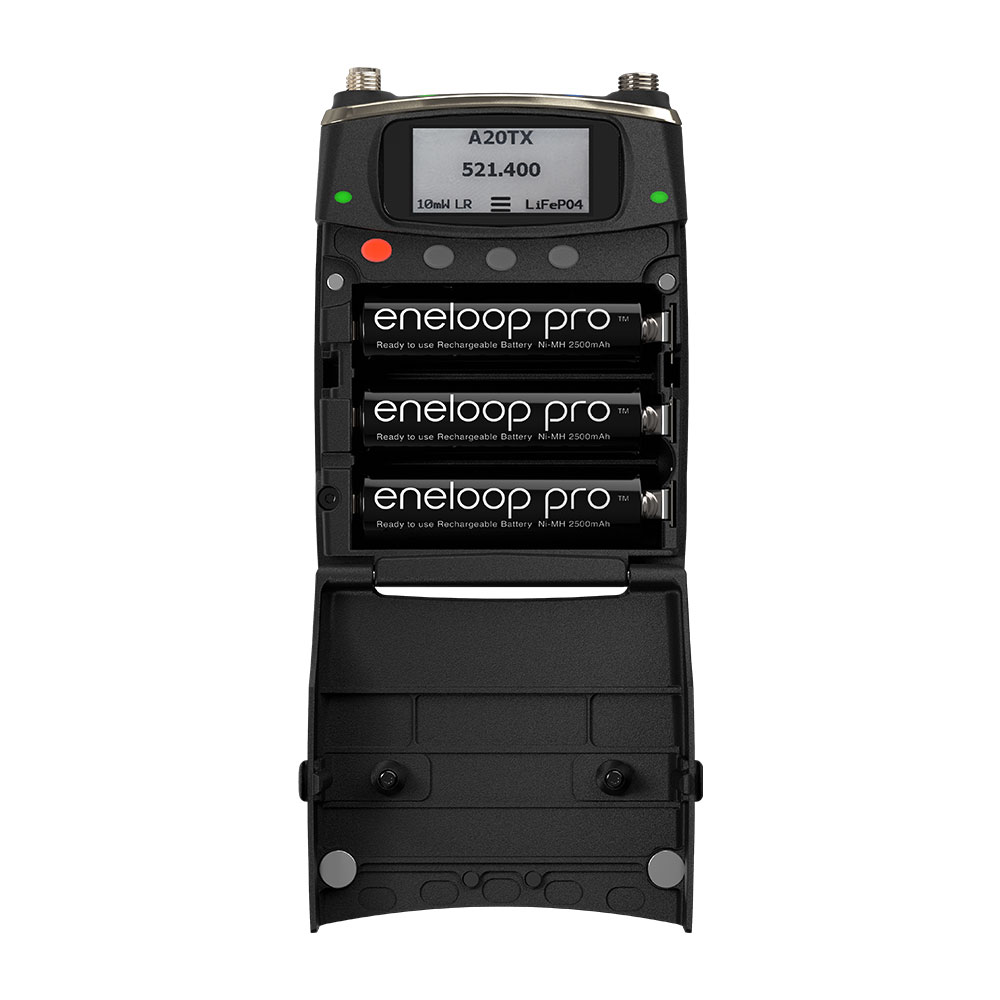

Powering Options

There’s no need to stock special batteries for the A20-TX transmitter. It can work with any type of AA batteries, no matter the chemistry.

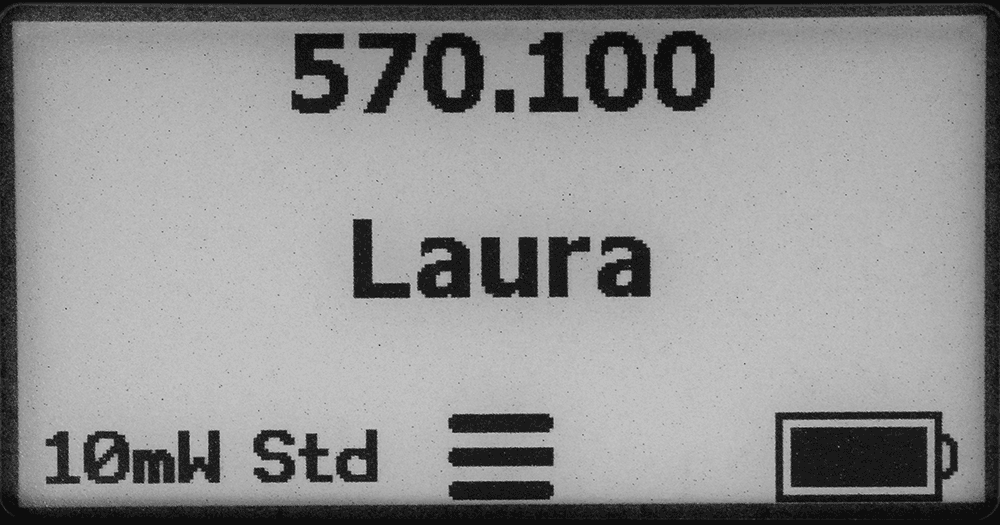

e-Paper Display

You can easily view settings and menus with the A20-TX transmitter’s e-Paper Display, even in sunlight or when powered down and its batteries removed. Need to change a setting in the dark? Open the battery door and the screen’s backlight turns on for easy visibility.

Features

  • Worldwide VHF and UHF tuning range from 169 MHz-1525 MHz.
  • Up to 12 hours battery runtime.
  • Eco-friendly operation from rechargeable Lithium batteries or from standard AA batteries.
  • Built-in battery charger via USB-C.
  • Full remote control of the A20-TX via A20-Remote companion app and from A20-Nexus and A20-Nexus Go via long-range NexLink.
  • State-of-the-art 100% digital long-range modulation delivers the longest transmission distance of any system on the market. 
  • RF Power output from 2 mW to 40 mW.
  • Lemo input supports 2-wire or 3-wire mono lav, balanced mic, switchable 12, 48V phantom, balanced line-level, AES3, AES42 (compatible with Schoeps SuperCMIT), and guitar (w/ optional Smart Guitar Cable). 
  • GainForward Architecture – no gain control to worry about on the A20-TX.
  • Full 10 Hz - 20 kHz audio bandwidth.
  • Sound Devices 8-Series, fully balanced mic preamp built in (140 dB dynamic range).
  • Ultra-quiet lavalier mic preamp (134 dB dynamic range).
  • Built-in 32-bit float, 48 kHz recorder with removable micro-SD card. 
  • Ultra-stable timecode built in, auto jammed via wireless NexLink.
  • Sunlight-readable e-Paper screen for control and display. Display persists when powered off.
  • USB-C for pairing with the A20-Nexus, file offload, charging, and timecode jamming. 
  • A20-TX Switch: Optional user-programmable bayonet switch, magnetically sensed and physically removable.
Features

TX Feature Comparison

Feature A20-TX A20-Mini
100% Digital Transmission Y Y
Compatible with A20-Nexus, A20-Nexus Go, A20-RX, and A10-RX Y Y
SpectraBand  Y Y
VHF (169-235 MHz) Support Y N
Tuning Range 169 - 1525 MHz 470 - 1525 Mhz
NexLink Long Range Control Y Y
GainForward Y Y
Long Range and Standard Modulation Y Y
AutoAssign frequencies from receiver to transmitters Y Y
Privacy Key Y Y

2-wire, 3-wire Lav Mic Input Y Y
Balanced Dynamic Mic Input Y N
Balanced Condenser Mic Input w/Phantom Power Y N
Balanced Line Input Y N
AES3 Input Y N
AES42 Input Y N
Guitar Input Y N

AA (Alkaline, NiMH, Lithium, Li-ion, LiFePO4) Y N
AAA (Lithium) N Y
Sony NP-BX1 N Y
Built-in Battery Charging Y (Li-ion, LiFePO4) Y (NP-BX1)
Compatible with PowerStation-8M Charging Station N Y

Built-in 32-bit float recording Y Y
Removable recording media Y N
Ability to Sync Timecode via USB or NexLink Y Y
Record and Transmit Simultaneously (outside US) Y Y

Display Y N
A20-Remote App for iOS and Android Y Y
Web App Control Y (via A20-Nexus) Y (via A20-Nexus)

Compatible with user-prgrammable A20-TX Switch Y N

USB-C Port (for charging, timecode, file transfer, pairing) Y Y
Specifications

Specifications

Frequency Range 169 to 1525 MHz
Transmitter tunable in 25 kHz steps
Available frequencies are dependent on region
RF Output Power Off, Low - 2 mW, Normal - 10 mW, High - 20 mW, Extra High -40 mW
Modulation Mode Proprietary, 100% digital RF modulation
Standard or Long Range, selectable

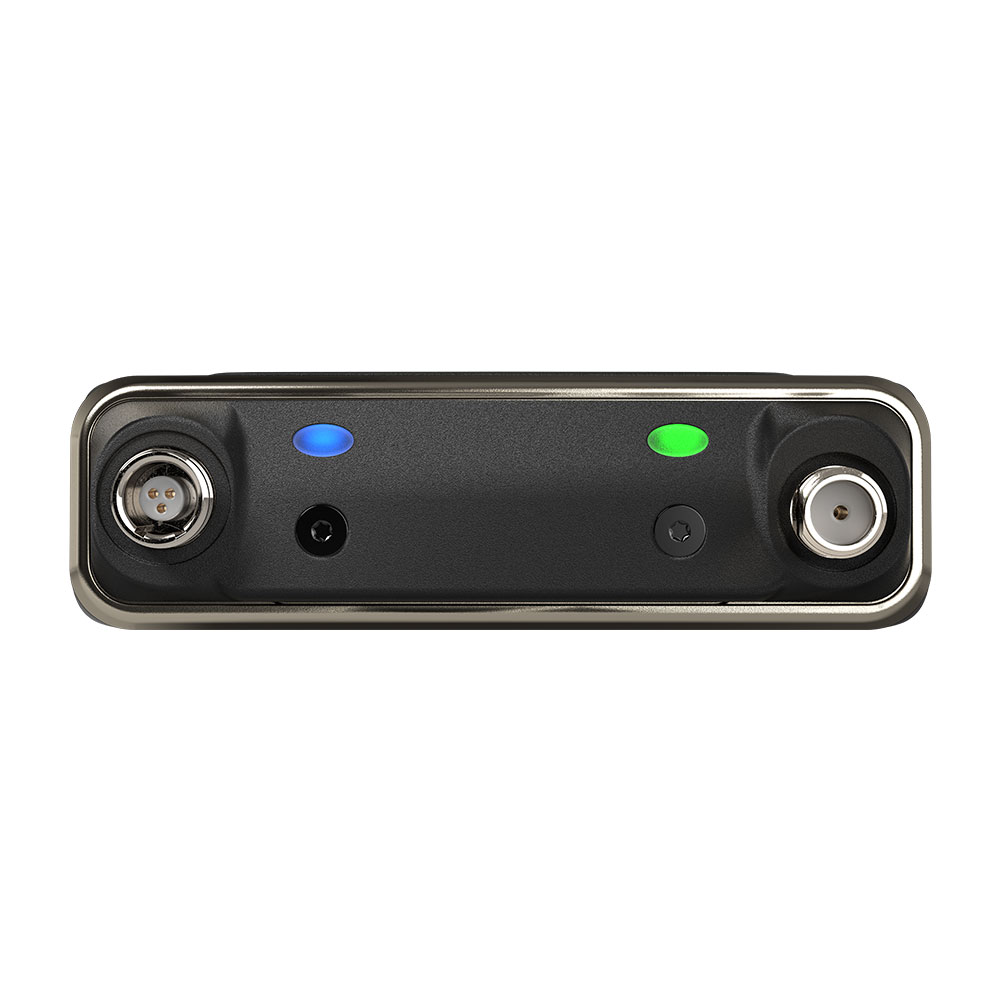

Antennas UHF RF: SMA connector, removable antenna
2.4 GHz built-in, bottom of unit
Audio Frequency Response 10 Hz - 20 kHz, +/- 1 dB re 1 kHz
Audio Input
Lavalier Microphone 2-wire or 3-wire type lavalier mics supported
Auto-selected when lavalier mic connected to Lemo input
Dynamic range: 134 dB min, A-weighted
Input clip level: 5V p-p (limited by lavalier microphone)
Lemo pin 1 = ground; Lemo pin 2 = 5V bias power; Lemo pin 3 = audio/bias (8k to 5V internal)
Auto unit power on/off with connection/removal of lavalier microphone (menu selectable)
Balanced Mic True, fully balanced, Sound Devices 8-Series mic preamp
Dynamic range: 140 dB min, A-weighted
Menu selectable with connection of XL-BALXLR-4 cable to Lemo input
Phantom power: 12V or 48V, full 10mA available per IEC 61938
XLR pin 1 = ground; XLR pin 2 = +; XLR pin 3 = -
Line Input True, fully balanced line-level input (no external resistors required)
Input clip level: +26 dBu
Menu selectable with connection of XL-BALXLR-4 cable to Lemo input
XLR pin 1 = ground; XLR pin 2 = +; XLR pin 3 = -
AES42 AES digital input with common mode power for Digital mics such as Schoeps SuperCMIT
250mA current available
Selectable audio channel 1 or 2 via menu
Menu selectable with connection of XL-BALXLR-4 cable to Lemo input
XLR pin 1 = ground; XLR pin 2 = +; XLR pin 3 = -
AES3 AES digital input without common mode power
Selectable audio channel 1 or 2 via menu
Menu selectable with connection of XL-BALXLR-4 cable to Lemo input
XLR pin 1 = ground; XLR pin 2 = +; XLR pin 3 = -
Guitar Auto-selected when connected with A20-TX Smart Guitar Cable
¼” tip = + ¼” sleeve = ground
18V p-p max input level
Input impedance: 100k, 1M, 10M (menu selectable)
Cable capacitance: 0 pF - 3000 pF in 50 pF steps (menu selectable)
Balanced connection from ¼” plug to Lemo for low-noise susceptibility
Menu and Controls e-Paper screen highly visible in direct sunlight
e-Paper screen keeps display even with no batteries
Power/Pair button and three navigation buttons protected inside battery compartment
Optional user-programmable bayonet switch for top of transmitter (A20-TX Switch)
Remote Control A20-Remote Android, iOS, and iPad app via Bluetooth 5.2 LE
A20-Nexus, A20-Nexus Go receivers via super-long-range NexLink
Recording Media Micro SD card
Recording File Format 32 Bit Float, 48 kHz, Monophonic
Broadcast WAV (<4 GB), RF64 WAV (>4 GB)
Simultaneous Record and Transmit mode when using lavalier mic input is not available on A20-TX units sold or operated in the United States of America.
Timecode Input via XL-TC-USBC-LEMO, XL-TC-USBC-BNC, USB-A to USB-C (from 8-Series) or wirelessly over NexLink (from A20-Nexus/A20-Nexus Go)
LTC: 0.3 V - 3 V p-p (–17 dBu to +3 dBu), 20k ohm impedance
LTC Output via XL-TC-USBC-LEMO: 3 V p-p, 400 ohm impedance
Timecode Clock 0.2 ppm accuracy
Holds accurate clock for four hours while powered down with batteries inserted, holds for one hour without batteries via internal supercapacitor
Auto Jams timecode via USB-C connector or wirelessly via NexLink.
Timecode Frame Rates 23.98, 24, 25, 29.97 DF, 29.97 ND, 30 DF, 30 ND
Frame rates are auto-detected from incoming source

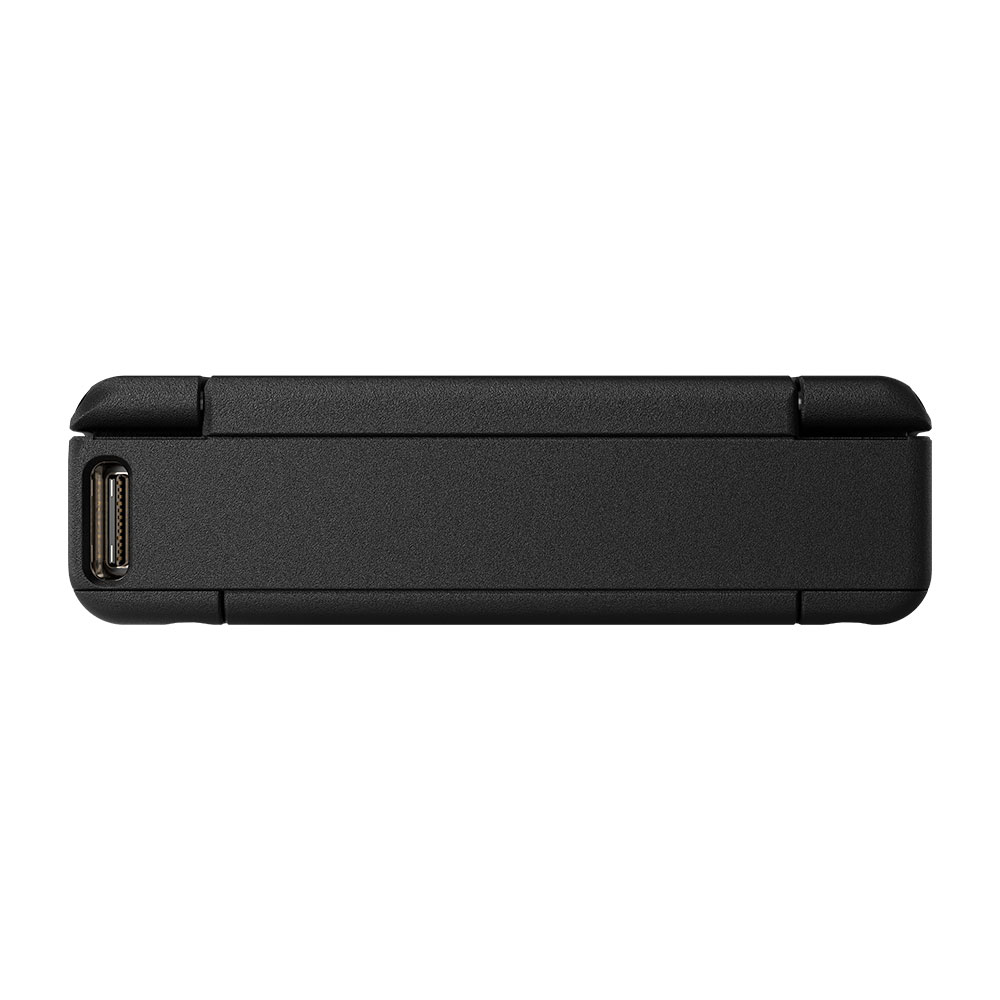

USB-C Mass Storage (USB-C): USB 2.0 high speed for file transfer
Charges Li-ion and LiFePO4 batteries inserted in A20-TX
Pairing to Sound Devices A20-Nexus, A20-Nexus Go receivers
Timecode I/O
Powering “1.5V” Alkaline, Lithium primary, NiMH AA batteries; 3 for operation
“3.7V” Rechargeable Lithium-Ion, Rechargeable LiFePO4 AA batteries; 1, 2, of 3 for operation
Energizer Ultimate AA primary cells recommended for longest runtime
Battery Charging Built-in charging of Lithium-Ion and LiFePO4 batteries via USB-C
Battery Runtime Up to 12 hours (depending on battery chemistry, number of batteries, RF power, input type, mode)
Unit can be completely powered off remotely via app or via NexLink to extend battery runtime
Environmental Operating: -10° C to 38° C
Storage: -40° C to 85° C
0 to 90% relative humidity (non-condensing)
Dimensions (H x W x D) 3.3 x 2.5 x 0.71 in
8.5 x 6.4 x 1.81 cm
Weight 0.2lbs (without batteries)
98g (without batteries
