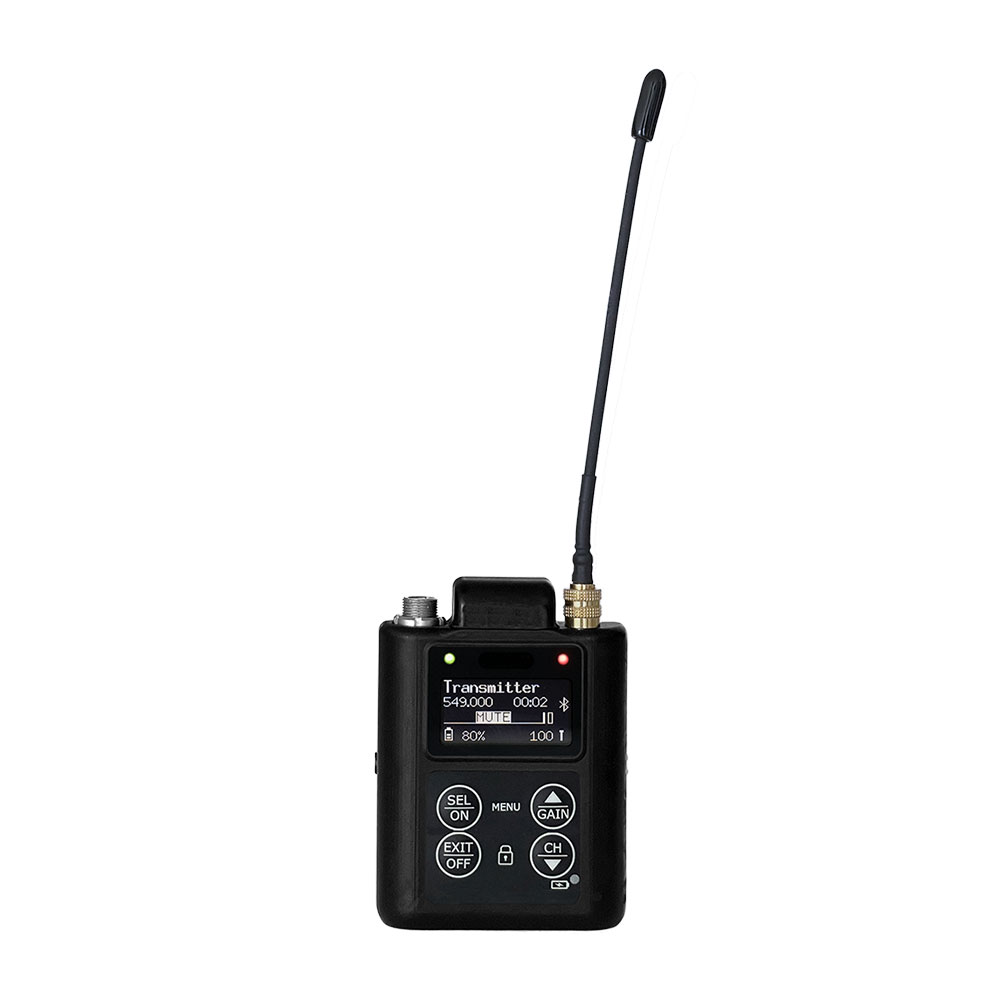

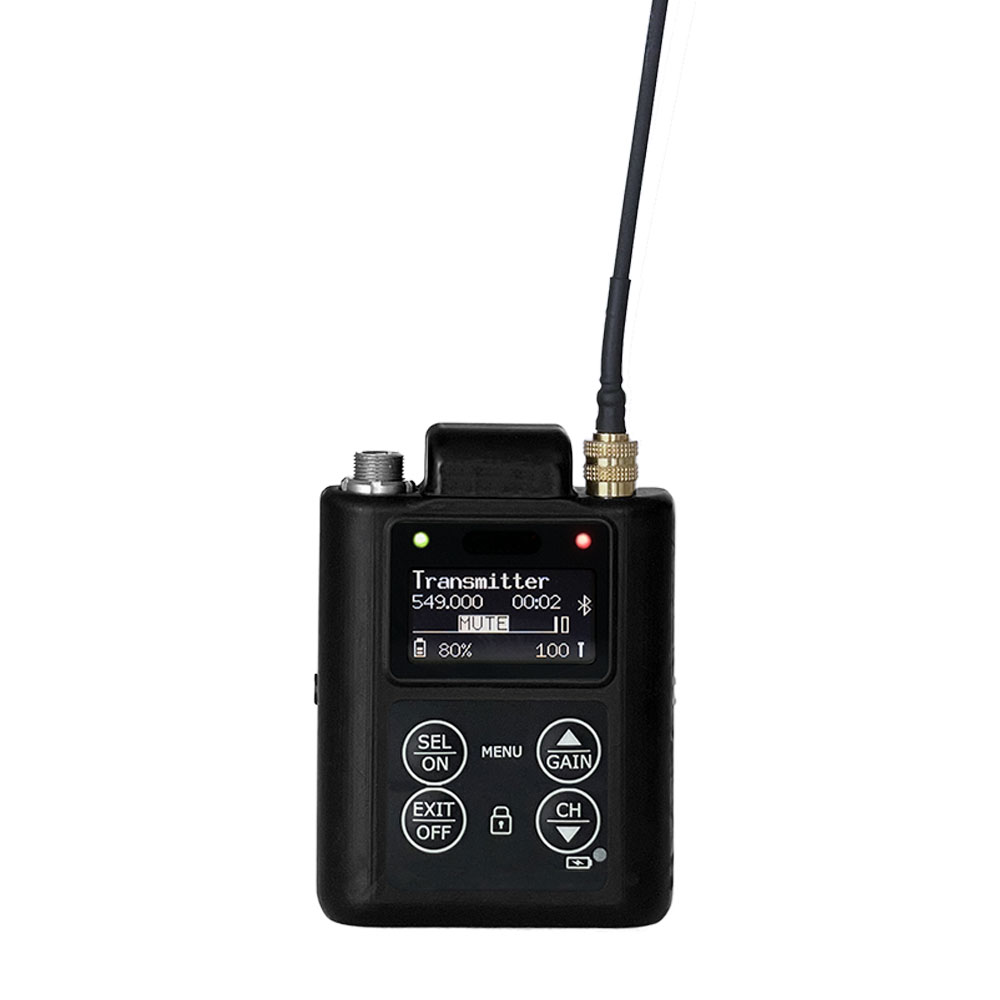

Wisycom MTP61 Miniature Pocket Transmitter

£1,933.00 (£1,610.83 Exc. VAT)
(RRP: £1,990.61) You save: £57.61!
In stock now
Wisycom MTP61 Miniature Pocket Transmitter
Wisycom MTP61 Miniature Pocket Transmitter
Wisycom MTP61 Miniature Pocket Transmitter

Wisycom MTP61 Miniature Pocket Transmitter

£1,933.00 (£1,610.83 Exc. VAT)
(RRP: £1,990.61) You save: £57.61!
UK1: 470-663 MHz + 960-1075 MHz
UK2: 510- 698 MHz + 960 - 1075 MHz
In stock now
Brand: WisycomModel: MTP61-UK1
+
Key Features:
  • The multi-band MTP61 has a wide tuning range of 470 to 1260 MHz
  • Monitor & control with Bluetooth via Wisycom BT App
  • Allows for real-time adjustment of parameters wirelessly
  • Powering with Lithium-ion battery LBP61 for 8~ hours of runtime
See More...
S-WIS-MTP61-UK1
Information

Wisycom MTP61 Miniature Pocket Transmitter

MTP61 is a miniature pocket transmitter ideal for location sound, theater and all situations where the smallest size is mandatory

FEATURES

  • The multi-band MTP61 currently has the widest tuning range of any wireless transmitter on the market (470 to 1260 MHz)
  • UK1 Power Profile: 470 - 663 MHz, Max power 100mW + 960 - 1075 MHz, Max power 50mW
  • UK2 Power Profile: 510 - 698 MHz, Max power 100mW + 960 - 1075 MHz, Max power 50mW
  • Monitor & control with Bluetooth via Wisycom BT App to adjust parameters in real time
  • The Bluetooth interface and mobile app allows full control from mobile or tablet
  • Advanced linear technology eliminates intermodulation distortion for more robust signal, extended range, and the ability to operate multiple transmitters in close proximity to each other without needing an intermod frequency plan
  • Embedded recorder to record directly on the internal 64 GB micro SD card and integrated Linear Time Code decoding
  • DSP based signal processing allows easy switching between wide and narrow band operation
  • ENS compander for a totally clear sound
  • Powering with Lithium-ion battery LBP61 or CS-BCE10 (Part No. CGA-S008E 3.7V, 1050 mAh, 3.9Wh Cameron Sino)
  • Integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers
  • Front panel buttons to quickly enter menu thanks to its multiple shortcut combinations

The smallest and lightest multiband bodypack transmitter on the market, the MTP61 has the widest tuning range currently available (470 to 1260MHz). Among the industry’s most powerful transmitters, the compact design of the MTP61 not only makes it comfortable, but also ideal for location sound and theater applications alike.

It is equipped with a Bluetooth module which allows to adjust parameters in real time via mobile device apps.

It offers embedded recorder to record directly on the internal 64 GB micro SD card and an integrated Linear Timecode decoding.

Specifications

Specifications

Frequency rangefrom 470 to 1260 Mhz, depends on the country
Available BandsUK1: 470 - 663 MHz + DME: 960 - 1075 MHz (B7 - Low Band)
UK2: 510 - 698 MHz + DME: 960 - 1075 MHz (B3 - Mid Band)
Switchable channels2400 managed in 40 groups ofr 60 frequencies completely user programmable
Switching-windowUp to 362 MHz, depending on band (see Configurations)
FrequenciesQuartz PLL frequency synthesizer circuit (5 kHz step)
Frequency error±2.5 ppm, in the rated temperature range
RF Power10mW/ L10 W/ 20 mW/ L20 mW/ 50 mW/ 100 mW*
*on specific configurations
Antenna connectorSSMA
ModulationWideband and Narrow-band with DSP based digital signal processing
Nominal deviation±40 kHz Wideband / ±25 kHz Narrowband
Peak deviation±56 kHz Wideband / ±35 kHz Narrowband
Spurious emissions< 2 nW
Telemetry featureTX transmits also a digitally modulated sub-carrier, suitable for:
tone-squelch operating
remote battery monitoring, compander and modulation control
optional PTT (push to talk) operation
Noise Reduction systemENS - Wisycom ultra-high permorfmance compander
AF bandwidthAudio frequency response (dBa)
in NarrowBand mode (NB): 45 Hz ÷ 17 KHz (3dB)
in WideBand mode (WB): 45 Hz ÷ 20 KHz (3dB)
Distortion< 0.3 % (0.15 % typ.)
SND/D ratio (Analogue)typ. 115 dB (A)rms with 40 kHz deviation; typ. 121 dB (A)rms with 56 kHz deviation Wideband
typ. 115 dB (A)rms with 25 kHz deviation; typ. 121 dB (A)rms with 35 kHz deviation Narrowband
Audio input connectorLEMO 3pin
Audio input levelfrom -40 dBu (12mV RMS) to 6 dBu (1,55Vrms) adjustable in 1 dB steps
input dynamic extension with an integrated limiter
Max input level+6 dBu (1,55Vrms) at clipping
Storage mediainternal 64 GB micro SD memory card (industrial grade heavy duty)
Time codeLinear Timecode decoding
Bit rate24 bit / 32 bit
Sampling rate48 kHz

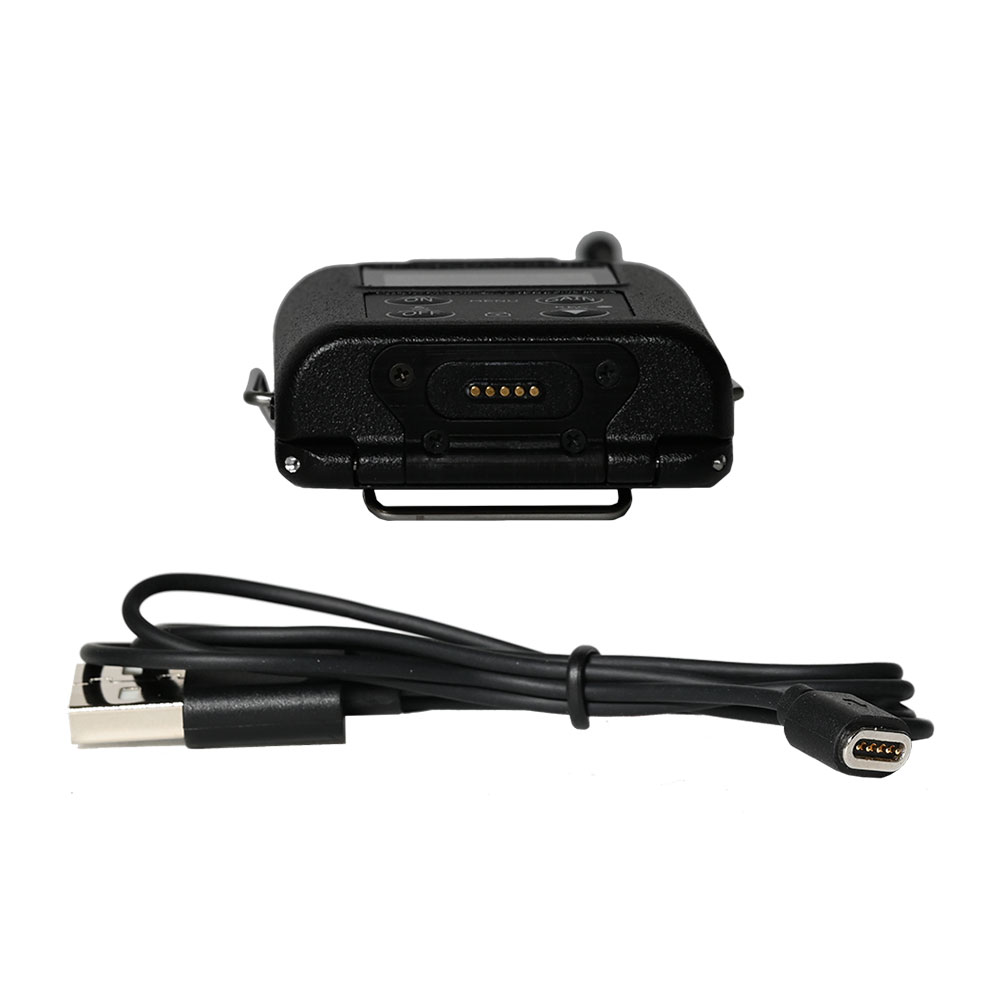

Managing interfaceBluetooth 5.2 low energy long range, proprietary waterproof magnetic connector 5 pin (USB HS + power + LTC)
LED3 RGB LEDs (red, green and blue) for audio, RF, battery status and battery charger
Battery level indicationpercentage or minute/second
PTT functionPin 3 of AF connector can be controlled via an externall PTT button
DisplayHigh contrast OLED white display (128 x 64 pixels)
Power supplyCameron Sino Lithium-ion battery Model CS-BCE10 Part No. CGA-S008E (3.7V, 1050 mAh)
Battery lifeapprox. 8 hours @ 10mW
Temperature range-10 ÷ +55 °C
Dimensions66,8mm x 47mm x 17mm (HxWxD) without clip
WeightApprox. 72 g. without battery, 94 g. with battery
