Brand: Sound DevicesModel: 28507
+
Key Features:
  • 4-Channel ultra-high-performance, true-diversity receivers in a half-rack size
  • Unparalleled SpectraBand tuning range of 169 – 1525 MHz
  • A high-quality, high-channel-count audio receiver that won't weigh you down
  • SprectraBand, GainForward, NexLink, RTSA and AutoAssign
See More...
S-SDV-A20-NEXUS-GO
Information

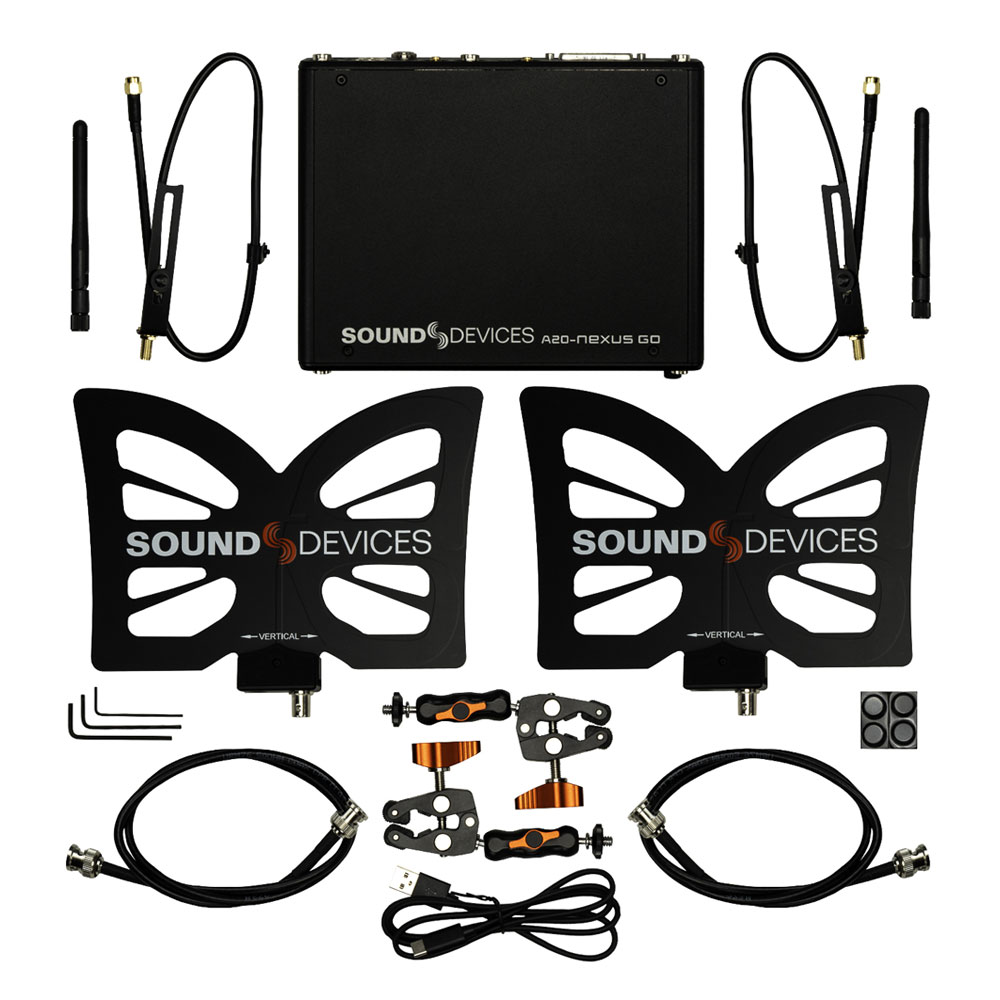

What's In The Box:


1 x A20-Nexus Go
2 x Monarch Antennas
2 x Antenna Mounts
2 x Side-Mount SMA Adapters
2 x 2.4GHz Antennas
2 x BNC Cables
1 x USB-A to USB-C Cable
1 x Set of Rubber Feet
1 x Set of Allen Keys

Sound Devices A20-Nexus Go 4-8 Channel True-Diversity Wireless Receiver with SpectraBand

Ready.

When you’re doing bag work, you need a high-quality, high-channel-count audio receiver that won’t weigh you down. Sound Devices’ A20-Nexus Go true-diversity wireless receiver was made with portability in mind. It comes with four receiver channels, and can be expanded to six and eight channels via software license, without additional hardware. Need to transition to a rack or cart? The A20-Nexus Go receiver’s half-unit size will save you space there, too. It’s ready for anything.

Set.

The A20-Nexus Go receiver has an advanced set of features inherent in the Sound Devices Astral family of products, including:

  • SpectraBand: The A20-Nexus Go receiver utilizes the unparalleled SpectraBand tuning range of 169 – 1525 MHz, allowing you the ability to find open spectrum, even in the busiest UHF TV band.
  • GainForward: No more stopping the action on set. No more adjusting the transmitter gain on the talent. You can set your levels and make adjustments at your A20-Nexus Go receiver and not at the transmitter with GainForward.

Go.

The A20-Nexus Go receiver is ready to go the distance, thanks to Sound Devices’ proprietary NexLink protocol.

  • NexLink: By utilizing the NexLink protocol, the A20-Nexus Go receiver has full long-range remote control of transmitters, even in the presence of on-set 2.4 GHz interference.
  • RTSA: With NexLink and the A20-Nexus Go receiver’s integrated RTSA (Real Time Spectrum Analyzer), you can visually monitor the changing RF environment without interrupting the audio or a shoot.
  • AutoAssign: Save time on set. The AutoAssign function automatically scans the current tuning band for clean frequencies and assigns them to multiple channels. The clean frequencies are then automatically pushed to transmitters linked to the NexLink protocol. This is all done with one button in mere seconds.

Features

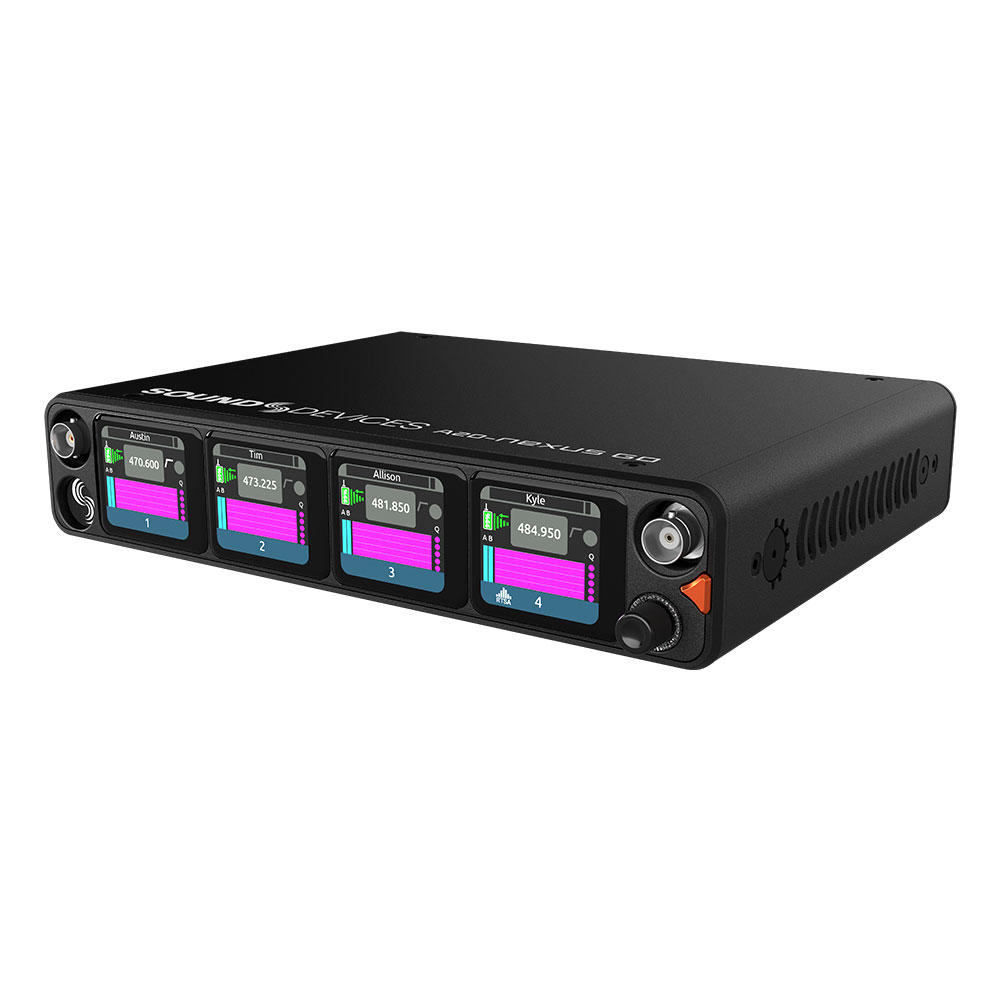

  • 4-channel ultra-high-performance, true-diversity receivers in a half-rack size (8.0” x 6.6” x 1.6” / 20.3cm x 16.8cm x 4.1cm).
  • Expandable to 6 or 8 channels via A20-Nexus Go 2-Channel Expansion Licenses.
  • 169 MHz – 1525 MHz tuning range via Sound Devices’ proprietary SpectraBand Technology.
  • Sound Devices NexLink: integrated, long-distance remote control of all wireless transmitters, including group power on/off.
  • AutoAssign: automatic deployment of clean frequencies in seconds.
  • Integrated Real Time Spectrum Analyzer (RTSA) and scanning for intuitive frequency coordination.
  • Flexible powering: via DC input, 8-Series, or AC mains (with optional adapter).

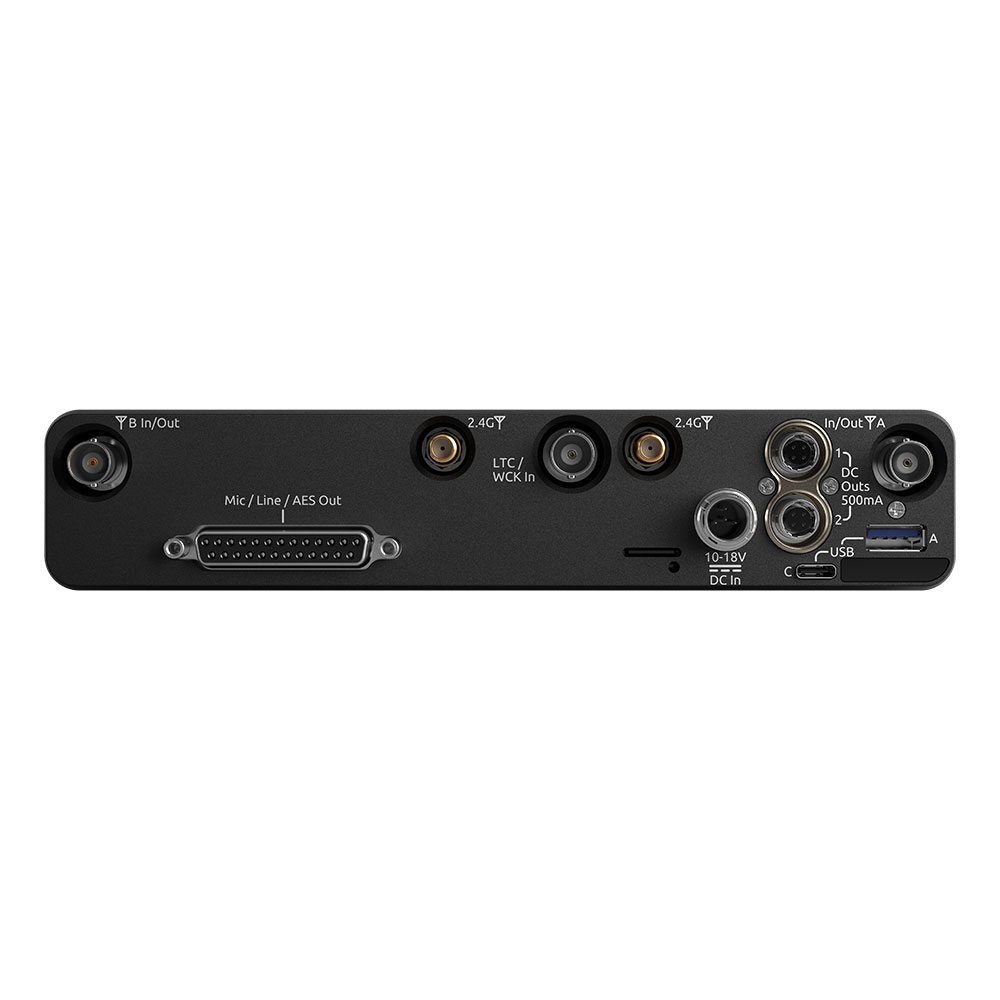

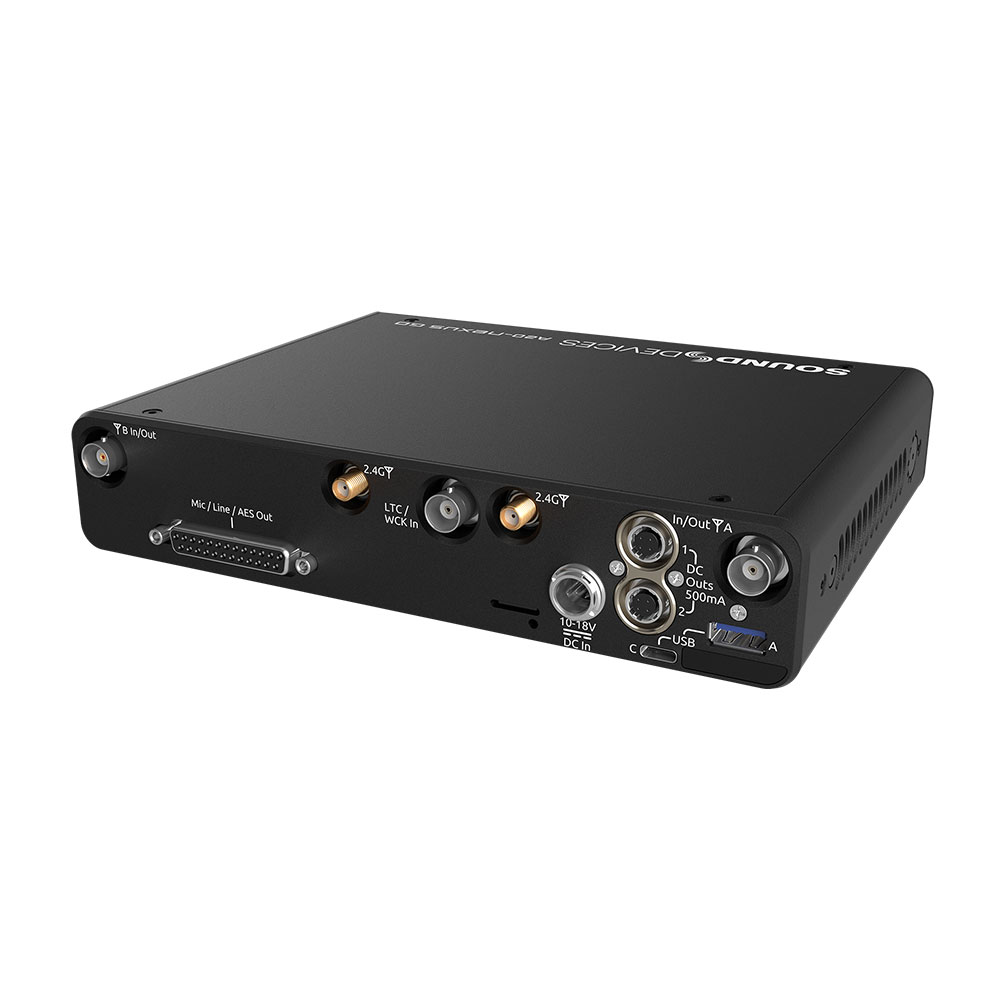

  • DB-25 connector for 8 channels of mic, line, or AES outputs.

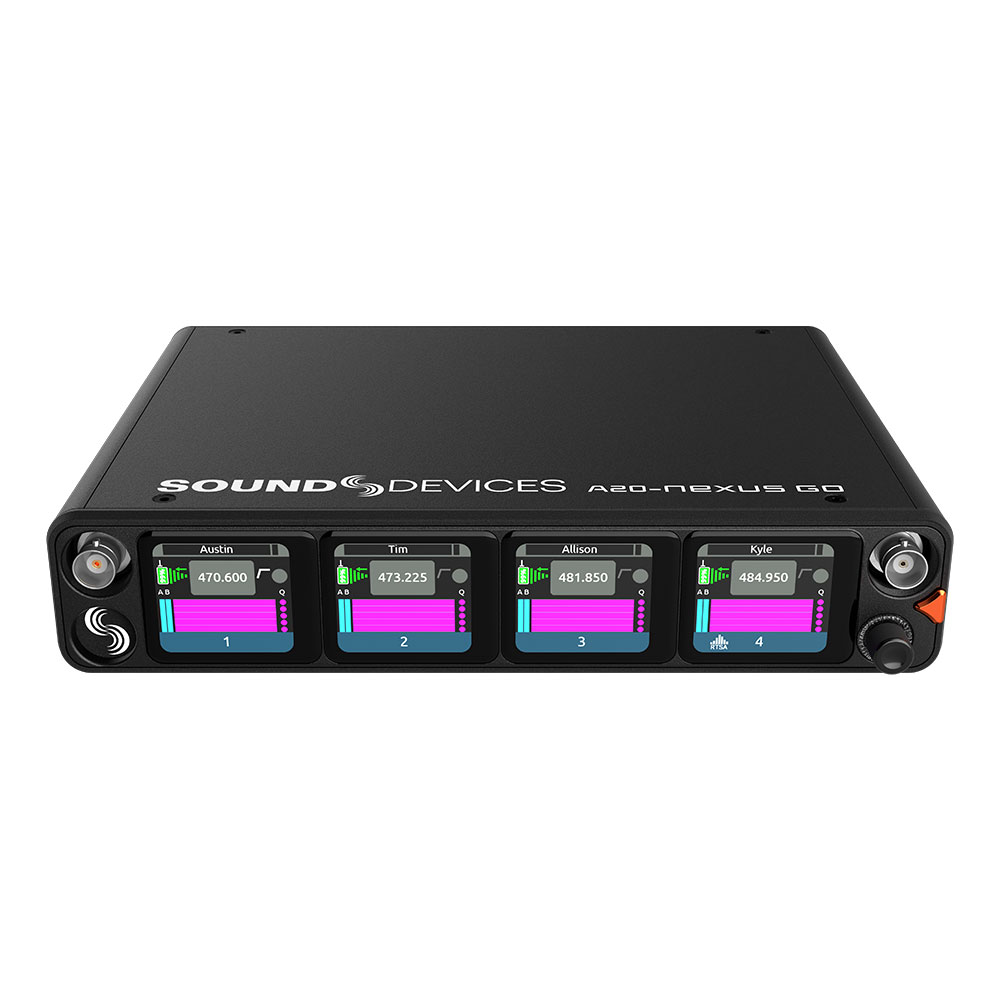

  • Wide, 6.2” color OLED array with touch for control and monitoring.

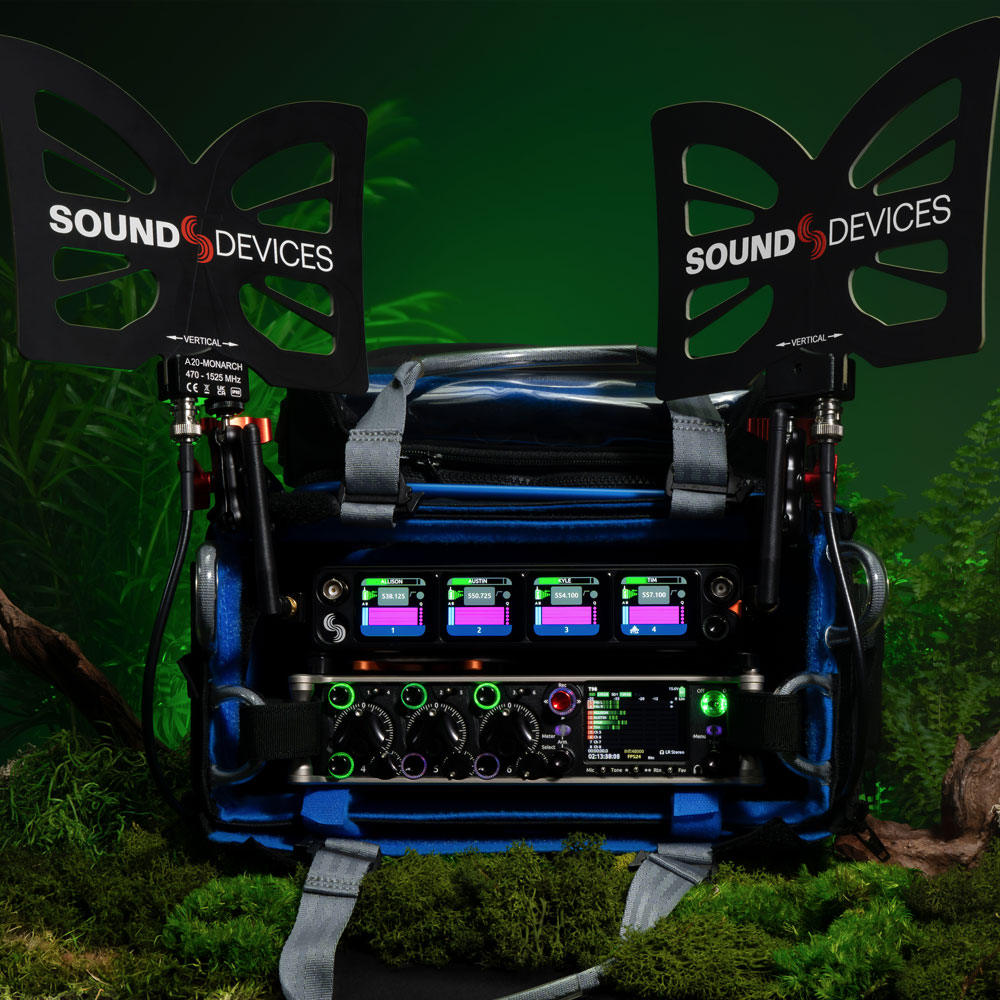

  • A20-QuickDock allows docking and undocking in seconds from Sound Devices 8-Series mixer-recorders with no tools or additional hardware.
  • Supports GainForward Architecture: No gain setting on the A20 transmitter. Adjust gain at the receiver or mixer.
  • 100% digital long-range modulation delivers the longest transmission distance of any digital system on the market. 
  • RF SAW filters for excellent rejection of interference from nearby IFB or camera hop transmitters.
  • Excellent audio quality, full 10 Hz – 20 kHz audio bandwidth.
  • BNC timecode input for auto timecode sync of transmitters over NexLink.
  • Front panel and rear panel BNC antenna inputs. Compatible with passive and bias-powered antennas
  • Supports control of the Wisycom LFA smart antenna.
  • Cascade out option on rear BNCs for cascading multiple A20-Nexus Go units.
  • USB-A port for thumb drives, keyboards, transmitter pairing, and timecode syncing. Supports USB hubs.
Features

RX Feature Comparison

Feature A20-Nexus A20-Nexus Go A20-RX
Channels 8 4 2
Expandable Channel Count 12, 16 6, 8 N
100% Digital, True-diversity Wireless Y Y Y
Compatible with A20-Mini, A20-TX Transmitters Y Y Y
SpectraBand  Y Y Y
Tuning Range 169-1525 MHz 169 - 1525 MHz 470 - 1525 MHz
NexLink Long Range Transmitter Control Y Y N
GainForward Y Y Y
Long Range and Standard Modulation Y Y Y
Real Time Spectrum Analyzer (RTSA) Y Y N
Scan Y Y Y
AutoAssign frequencies from receiver to transmitters Y Y N
Privacy Key Y Y Y
Antenna Inputs 2x2 2x2 2
Cascade Outs Y Y via 8-Series/SL-2
Active and Smart Antenna Support Y Y via 8-Series/SL-2

SuperSlot (Compatible with SL-2, SL-6) N N Y
Dock to 8-Series Mixer/Recorder Y Y via SL-2

Web App Control Y N N
Dante I/O 8-16 N N
AES Output 8-16 4-8 2  (via A-TA3 adapter)
Line Output 8-16 4-8 2  (via A-TA3 adapter)
Mic Output 8-16 4-8 N
Headphone Output Y N N

Timecode Input Y Y N
Wordclock Input Y Y N
Auto Timecode Sync of Transmitters over NexLink Y Y N

PoE+ Y N N
DC Outputs (for powering peripherals) Y Y via 8-Series/SL-2
DC Inputs 2 1 2 (via A-TA3 adapter)
Specifications

Specifications

RF
Tuning 169 to 1525 MHz (1356 MHz switching bandwidth)
25 kHz steps
SpectraBand Technology for maximum rejection of out-of-band signals
Available frequencies depend on country of operation
Modulation Proprietary, 100% digital RF modulation
Standard or Long Range, selectable per channel
Spurious Rejection >100 dB typical
Cascade output 50 ohm
3.5 dB Insertion Loss from front BNC through rear BNC: It is recommended to use an external powered antenna to overcome the 3 dB splitting loss in the A20-Nexus so that the receivers maintain excellent range
Wideband power split, pre-LNA
RF Bias output 12V, 200 mA each BNC
Smart antenna support, Wisycom-compatible
Audio
Latency Standard modulation = 2 ms, analog or digital outputs
Long Range modulation = 3.9 ms, analog or digital outputs
Audio Frequency Response 10 Hz–20 kHz, +/- 1 dB relative to 1 kHz
Dynamic Range >130 dB with an A20 transmitter
Output Level Line-level: +20 dBu for 0 dBFS
Mic-level: -20 dBu for 0 dBFS
Audio Output Sample Rate 44.1, 48, or 96 kHz
Digital Audio Output AES3 balanced connection, 110 ohm output impedance
Powering
Sources TA4 DC Input
8-Series (through unit-to-unit connector when docked)
AC mains adapter (sold separately)
Levels DC input, 10 to 18V in, 2A minimum at 10 VDC
10W idle, default configuration
Extra power passed through for USB power, active antenna power, and DC output power
USB-A: 5V, 500 mA output; supports keyboards, thumb drives, A20 transmitters, and USB hubs
DC Outs: max 500 mA between both outputs.
Environmental
Operating Temperature Range -10 °C to +55 °C
Dimensions (H x W x D) 4.0 cm x 20.3 cm x 16.7 cm
(1.6 in x 8.0 in 6.6 in)
Weight 1.22 kg (unpackaged)
2.7 lbs (unpackaged)
