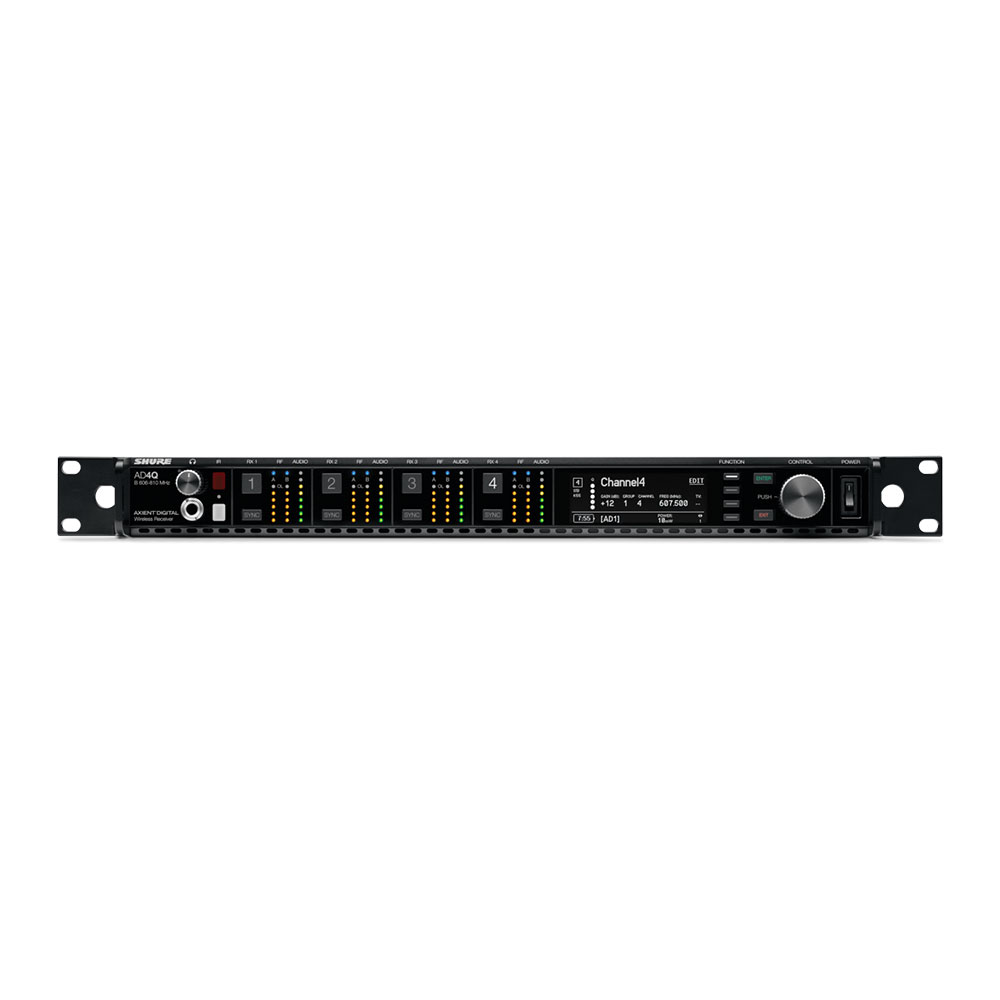

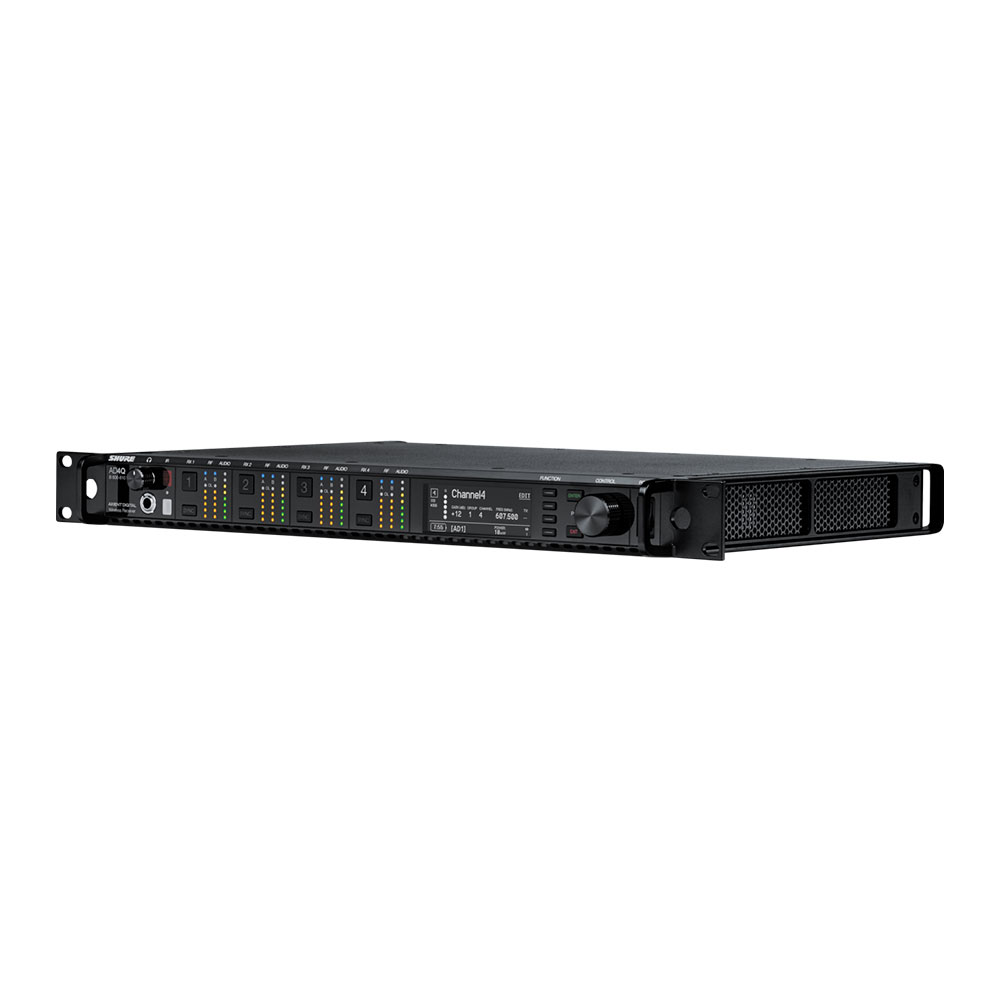

Shure AD4Q Axient Digital 4-Channel Digital Wireless Rack Receiver w/ DC XLR 4-Pin Power

CALL FOR PRICE

Out of stock

Shure AD4Q Axient Digital 4-Channel Digital Wireless Rack Receiver w/ DC XLR 4-Pin Power

Shure AD4Q Axient Digital 4-Channel Digital Wireless Rack Receiver w/ DC XLR 4-Pin Power

CALL FOR PRICE

Frequency470 - 636 MHz (A Band)

470 - 636 MHz

606 - 810 MHz

Out of stock

Brand: ShureModel: AD4Q-DC=-A

–

Key Features:

Digital Wireless Rack Receiver with the DC XLR option
Compatible with all AD series and ADX series transmitters
Works with Axient® Digital Wireless Systems
Wide tuning range up to 184 MHz

S-SHU-AD4Q-XLR-A

Copy URL

Information

Shure AD4Q Axient Digital 4-Channel Digital Wireless Rack Receiver w/ DC XLR 4-Pin Power

Digital Wireless Rack Receiver with the DC XLR option. Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio. Compatible with all AD series and ADX series transmitters.

Features

Works with Axient® Digital Wireless Systems
Features Quadversity™ mode for extended antenna coverage, switchable XLR and AES3 outputs, and all capabilities of the AD4D Two-Channel Digital Receiver
Available with or without accessories
Wide tuning range up to 184 MHz
True digital diversity reception per channel for drop-out resistance
Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
Quadversity mode for extended antenna coverage and improved RF signal-to-noise

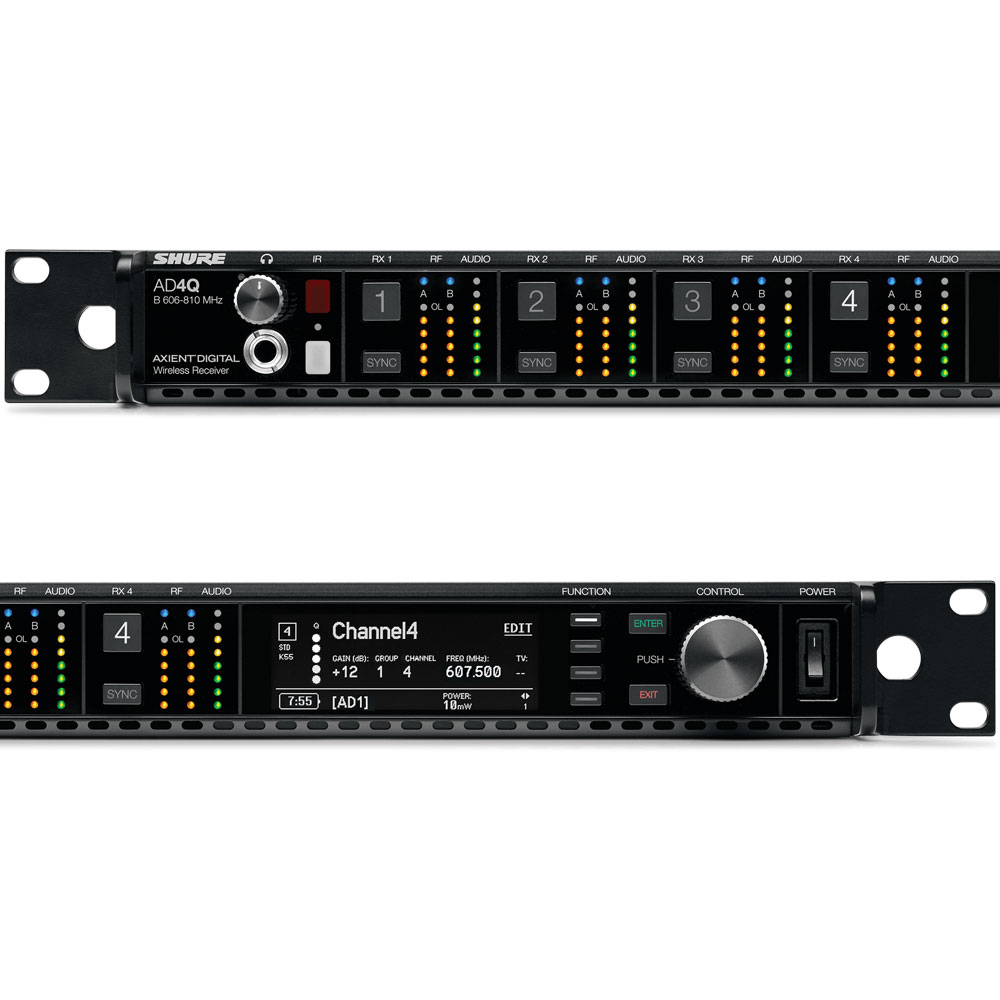

Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
Configurable Ethernet switch for redundant Dante or AES67 digital output

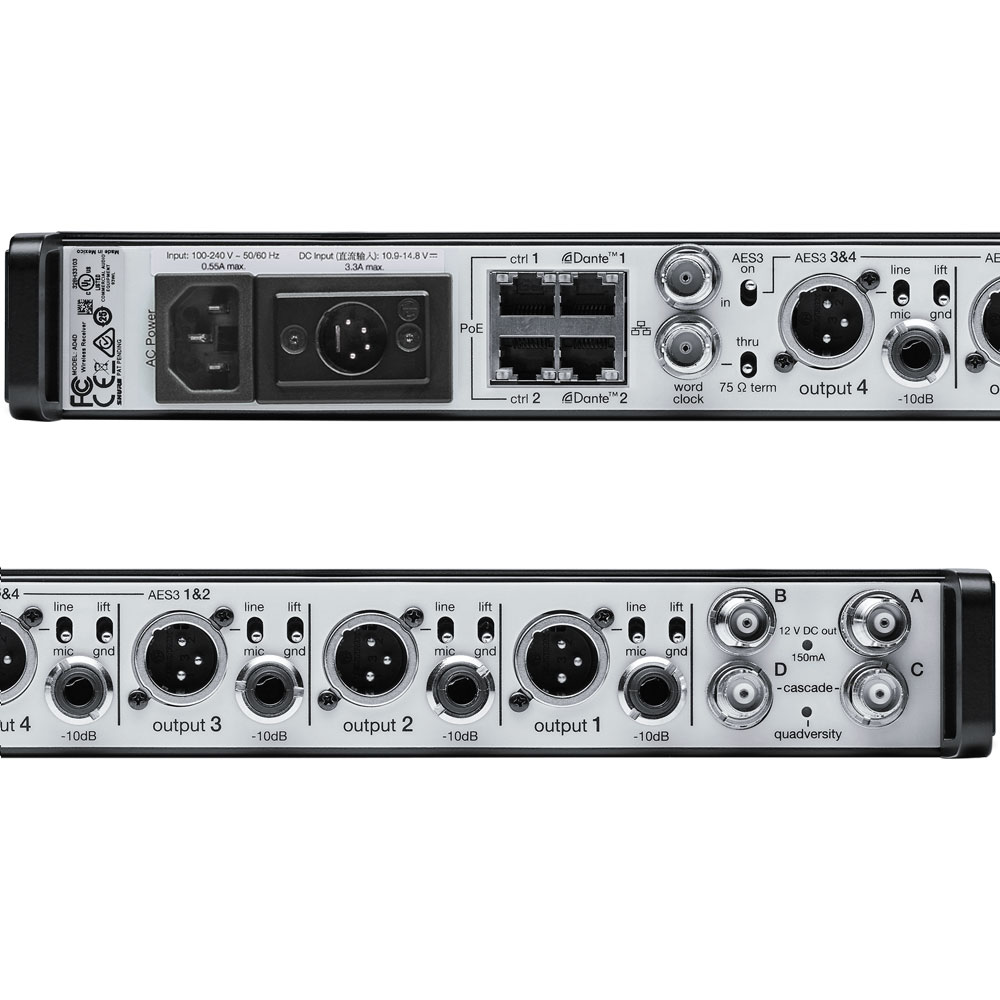

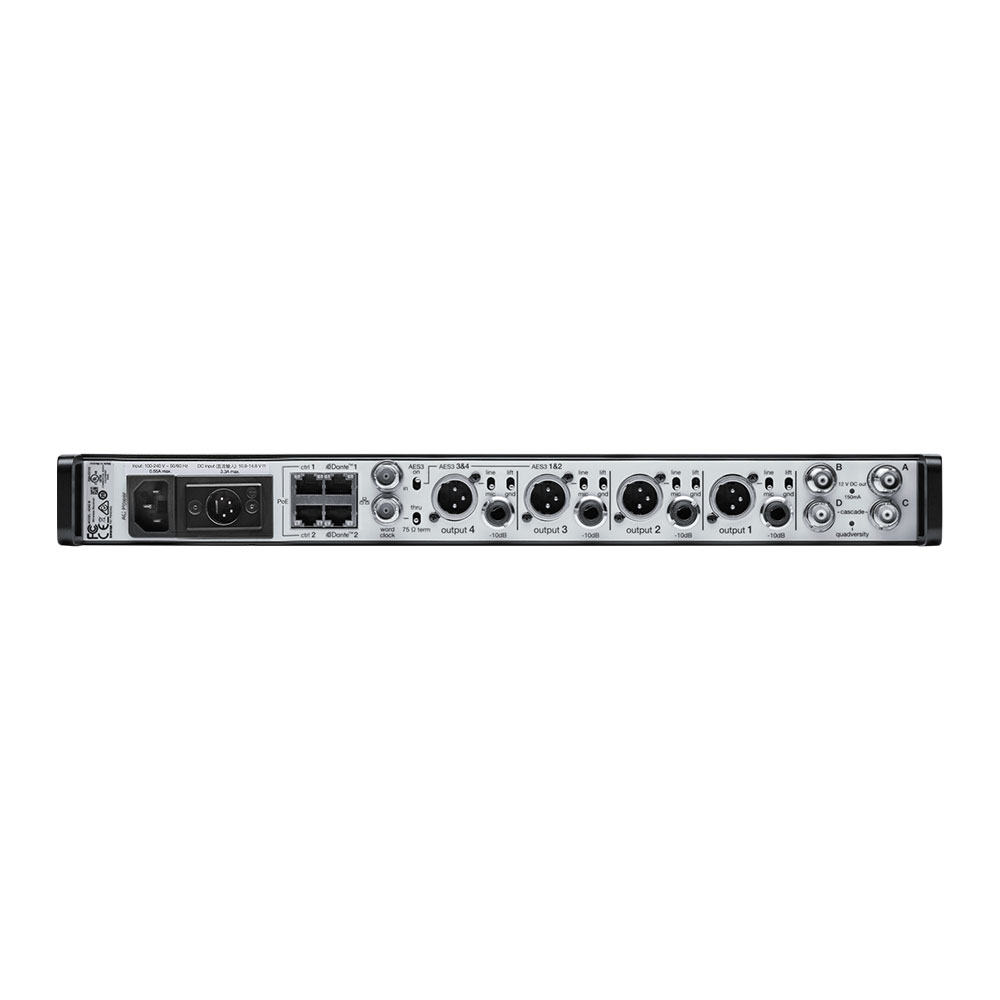

Switchable XLR and AES3 outputs
Channel Quality meter displays RF signal-to-noise
Locking AC connectors
DC module version available to support redundant power

The AD4Q Four-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, High Density (HD) mode, and Quadversity, ensuring solid performance in the most challenging RF environments. Networked control, AES3 + AES67 + Dante™ output, and signal routing options bring a new level of management and flexibility to your entire workflow.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Specifications

RF
RF Carrier Frequency Range	470–960 MHz Varies by Region. See Frequency Range and Output Power Table.
Working Range	100 m (330 ft) Note: Actual range depends on RF signal absorption, reflection and interference.
RF Tuning Step Size	25 kHz Varies by region.
Image Rejection	>70 dB typical
RF Sensitivity	−98 dBm at 10−5 BER
AUDIO
Latency	Standard mode: 2.08 ms High Density mode: 2.96 ms
Audio Frequency Response	20 Hz–20 kHz (±1 dB) Note: dependent on microphone type
Audio Dynamic Range A-weighted, typical, System Gain @ +10	XLR Analog Output: 120 dB (A-weighted); 117 dB (unweighted) AES3 Dante Digital Output: 130 dB (A-weighted); 126 dB (unweighted)
Total Harmonic Distortion –6 dBFS input, 1 kHz, System Gain @ +10	<0.01%
System Audio Polarity	Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output and the tip of the 6.35 mm (1/4-inch) output.
TEMPERATURE RANGE Note: Battery characteristics may limit this range.
Operating Temperature Range	0 to 122 °F (−18 °C to 50 °C)
Storage Temperature Range	−20 to 149 °F (−29 °C to 65 °C)
NOTE: This Radio equipment is intended for use in musical professional entertainment and similar applications. This Radio apparatus may be capable of operating on some frequencies not authorized in your region. Please contact your national authority to obtain information on authorized frequencies and RF power levels for wireless microphone products.
