Brand: ShureModel: ADX1M
+
Key Features:
  • Exceptional wireless transmitter with crystal-clear audio for professionals
  • Reliable RF performance ensures interference-free communication
  • Compact, durable design, measuring only 68 x 60 x 18 mm
  • Ideal for live events, broadcasting, and theater productions
See More...
S-SHU-ADX1M
Information

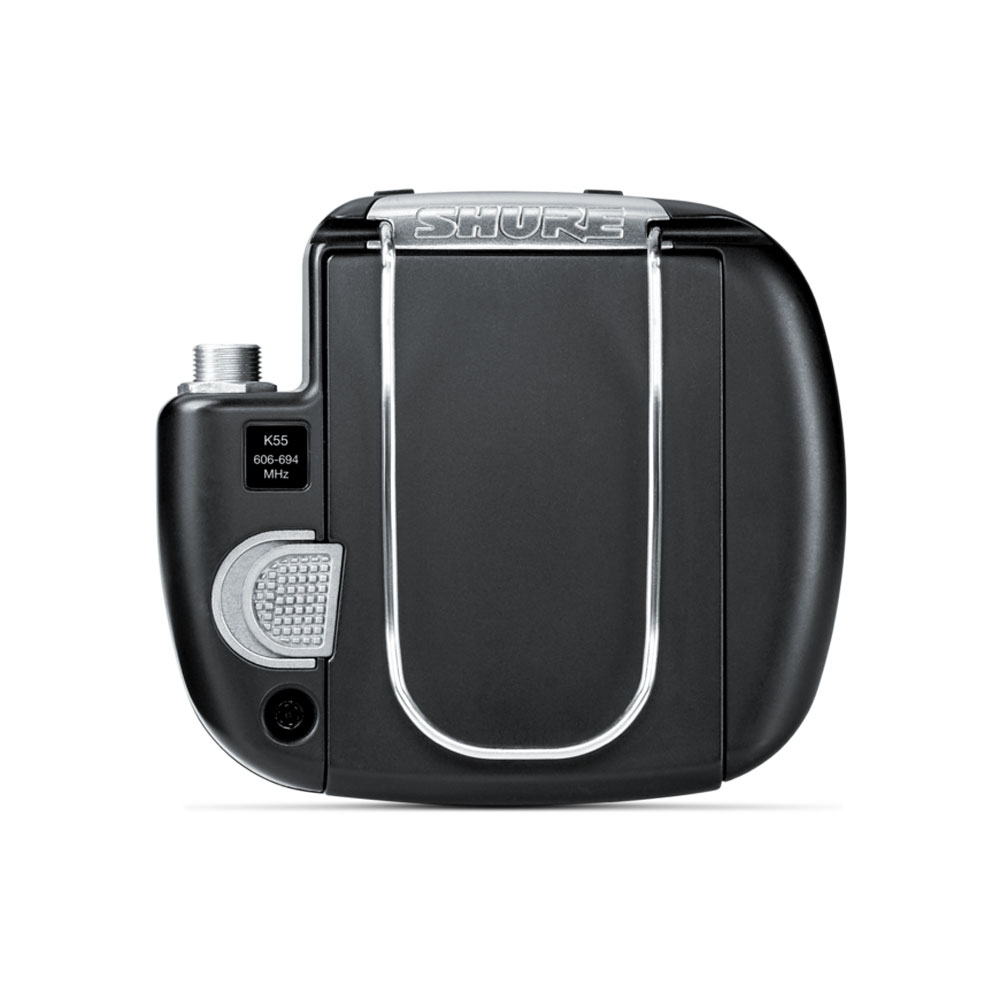

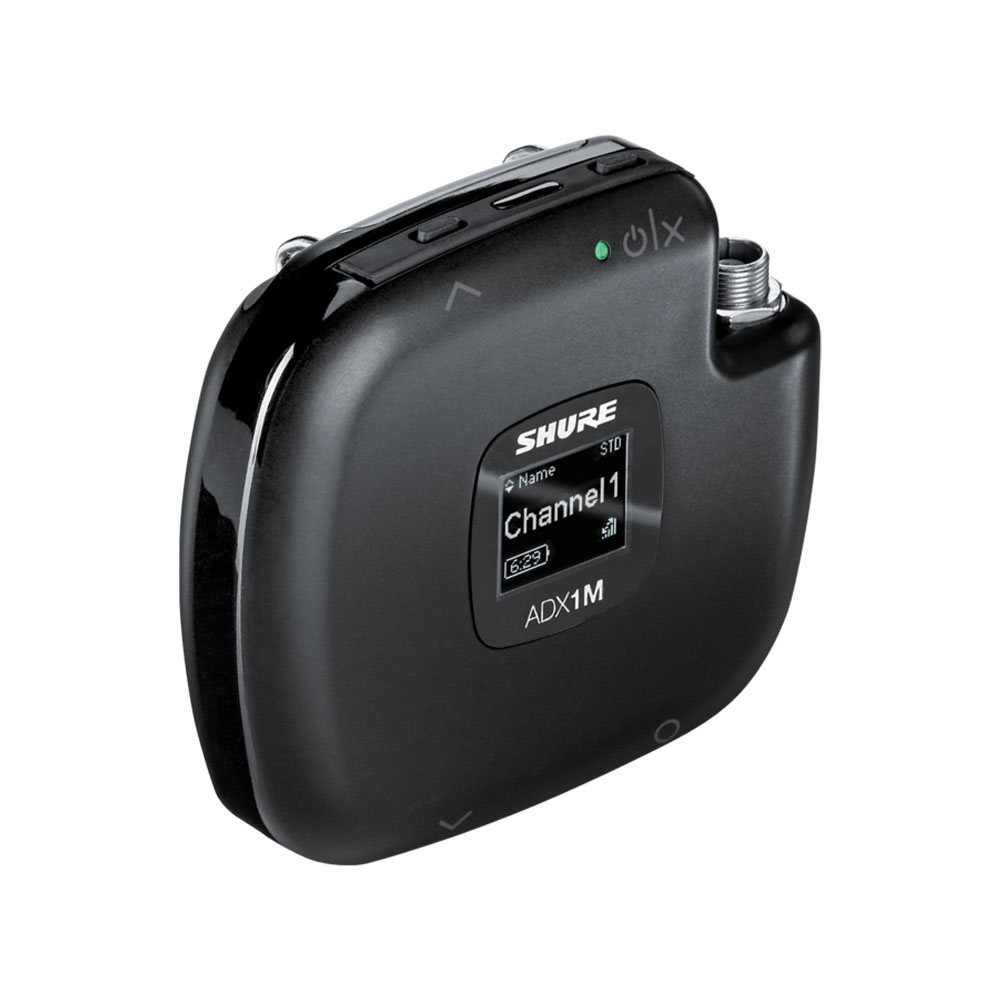

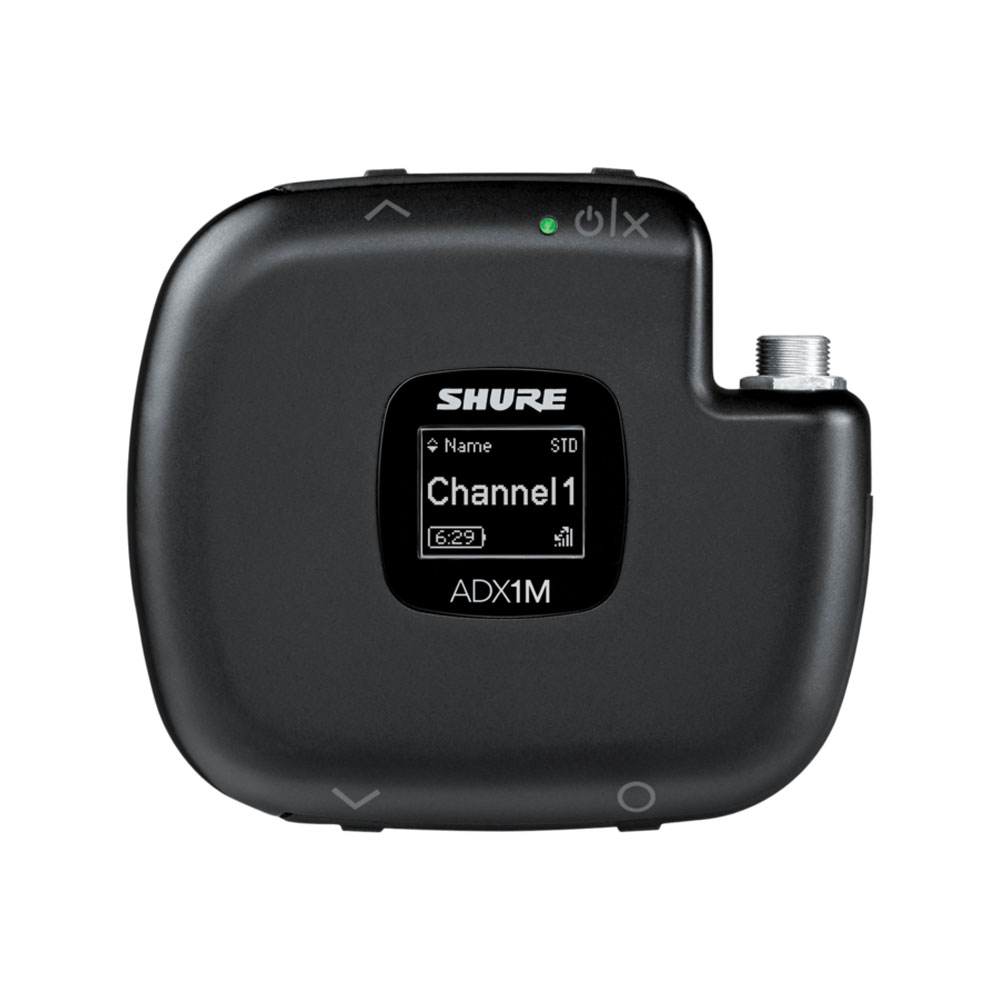

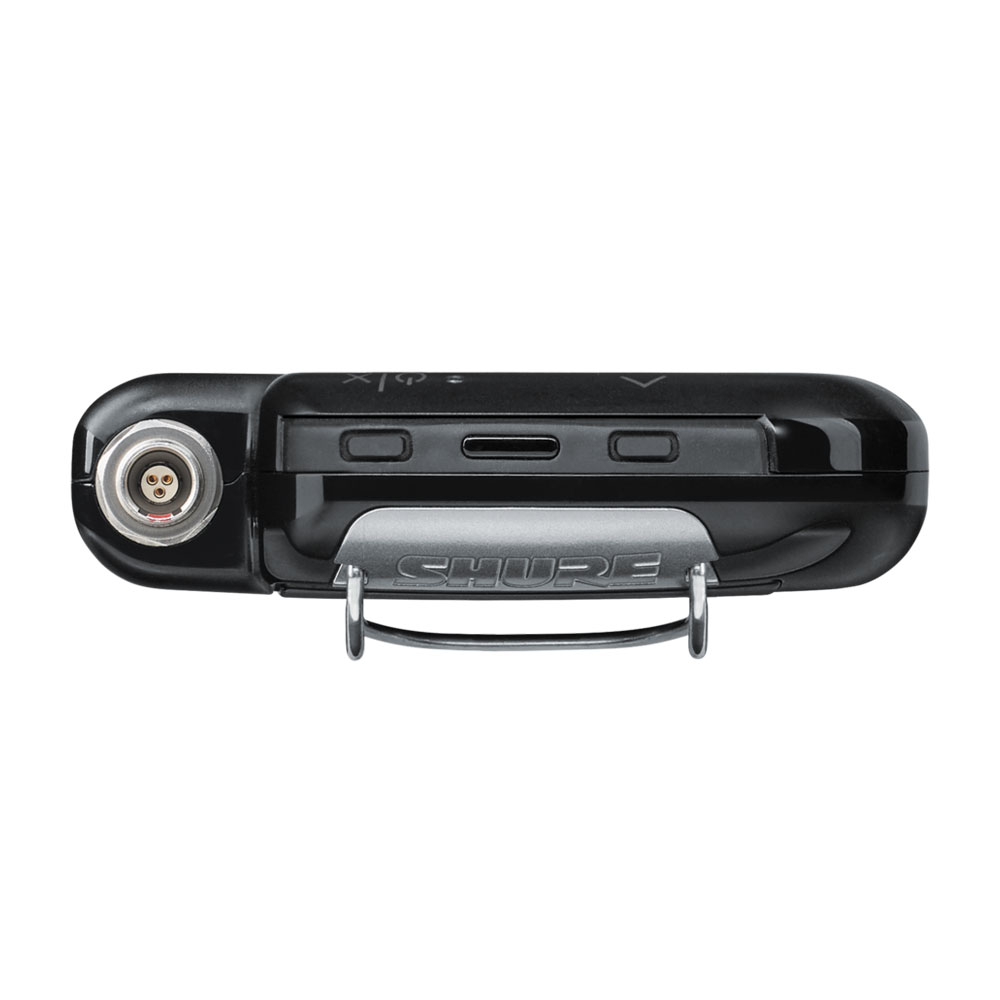

Shure ADX1M Axient Digital Micro Wireless Bodypack Transmitter

ADX1M delivers impeccable audio quality and RF performance, and is equipped with ShowLink® remote control for real-time parameter adjustments and interference avoidance. The contoured form factor and lightweight PEI construction offer both comfort and heat resistance. This transmitter features wide tuning, High Density (HD) mode, encryption, and advanced rechargeability. Membrane switches and LEMO connector protect against moisture, while the OLED display provides excellent visibility in low-light environments. Includes two SB910M rechargeable batteries.

Features

  • Small and streamlined design for better concealment and wear (68mm × 60mm × 18mm)
  • High-contrast OLED display
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Patent-pending internal adaptive antenna for optimized signal when ADX1M is worn against the body
  • Ultem®PEI construction for heat resistance and durability
  • Recessed LEMO connector
  • Sealed buttons and LEMO connection for protection against sweat and moisture ingress
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission
  • Up to 7 hours of runtime with SB910M rechargeable battery
  • Detachable belt clip

The ADX1M is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems.

ADX transmitters set the stage for exceptional performance, featuring wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Specifications

Specifications

RF
RF Carrier Frequency Range 470–960 MHz
Varies by Region. See Frequency Range and Output Power Table.
Working Range 100 m (330 ft)
Note: Actual range depends on RF signal absorption, reflection and interference.
RF Tuning Step Size 25 kHz
Varies by region.
Image Rejection >70 dB
typical
RF Sensitivity −98 dBm at 10−5 BER
AUDIO
Latency Standard mode: 2.08 ms
High Density mode: 2.96 ms
Audio Frequency Response 20 Hz–20 kHz (±1 dB)
Note: dependent on microphone type
Audio Dynamic Range
A-weighted, typical, System Gain @ +10
XLR Analog Output: 120 dB (A-weighted); 117 dB (unweighted)
AES3 Dante Digital Output: 130 dB (A-weighted); 126 dB (unweighted)
Total Harmonic Distortion
–6 dBFS input, 1 kHz, System Gain @ +10
<0.01%
System Audio Polarity Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output and the tip of the 6.35 mm (1/4-inch) output.
TEMPERATURE RANGE Note: Battery characteristics may limit this range.
Operating Temperature Range 0 to 122 °F (−18 °C to 50 °C)
Storage Temperature Range −20 to 149 °F (−29 °C to 65 °C)
NOTE: This Radio equipment is intended for use in musical professional entertainment and similar applications. This Radio apparatus may be capable of operating on some frequencies not authorized in your region. Please contact your national authority to obtain information on authorized frequencies and RF power levels for wireless microphone products.
