Shure ADX5BP-TA3 Bottom Plate for Axient Digital ADX5D

CALL FOR PRICE
Out of stock
Shure ADX5BP-TA3 Bottom Plate for Axient Digital ADX5D
Shure ADX5BP-TA3 Bottom Plate for Axient Digital ADX5D

Shure ADX5BP-TA3 Bottom Plate for Axient Digital ADX5D

CALL FOR PRICE
Out of stock
Brand: ShureModel: ADX5BP-TA3
+
Key Features:
  • TA3 Backplate for the Axient Digital ADX5D portable wireless receiver
  • 2 x TA3 analog outputs
  • Output 1 can be configured as two-channel AES3 digital outputs
  • 1 x 4-pin power connector for battery sled use
See More...
S-SHU-ADX5BP-TA3
Information

Shure ADX5BP-TA3 Bottom Plate for Axient Digital ADX5D

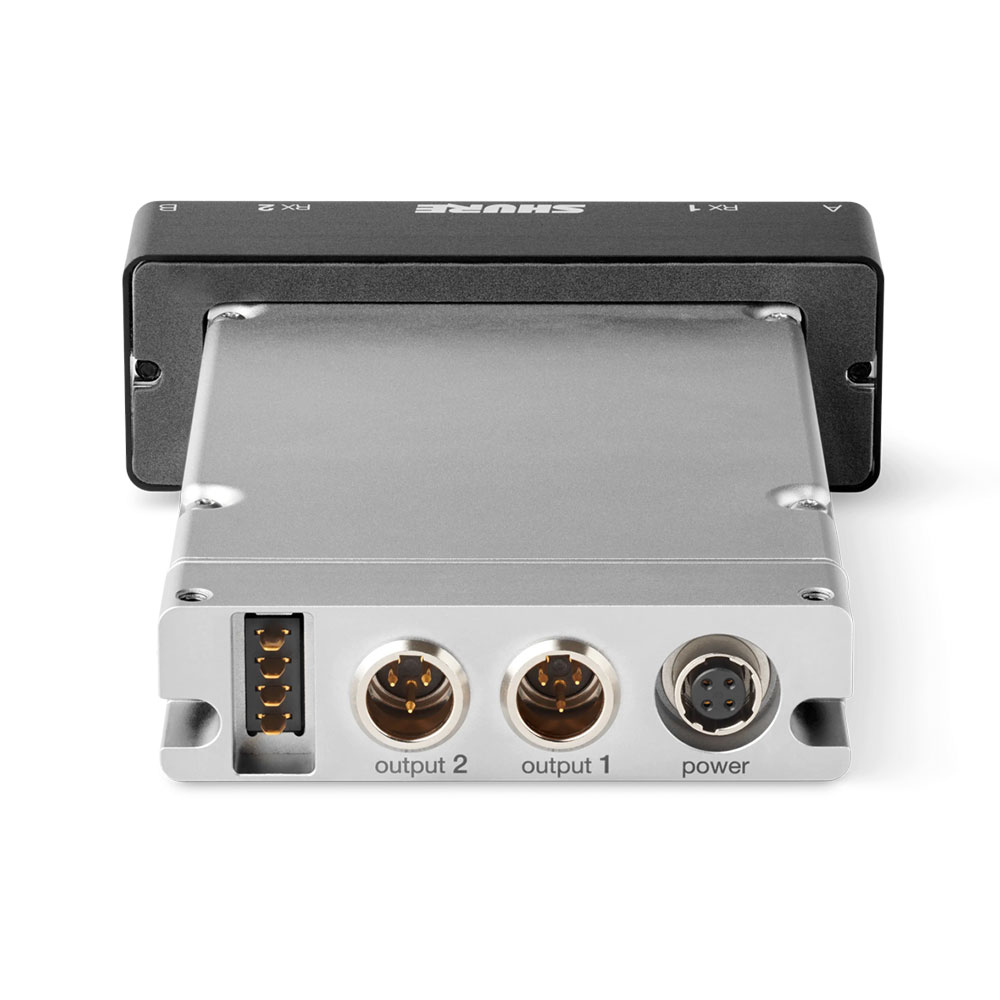

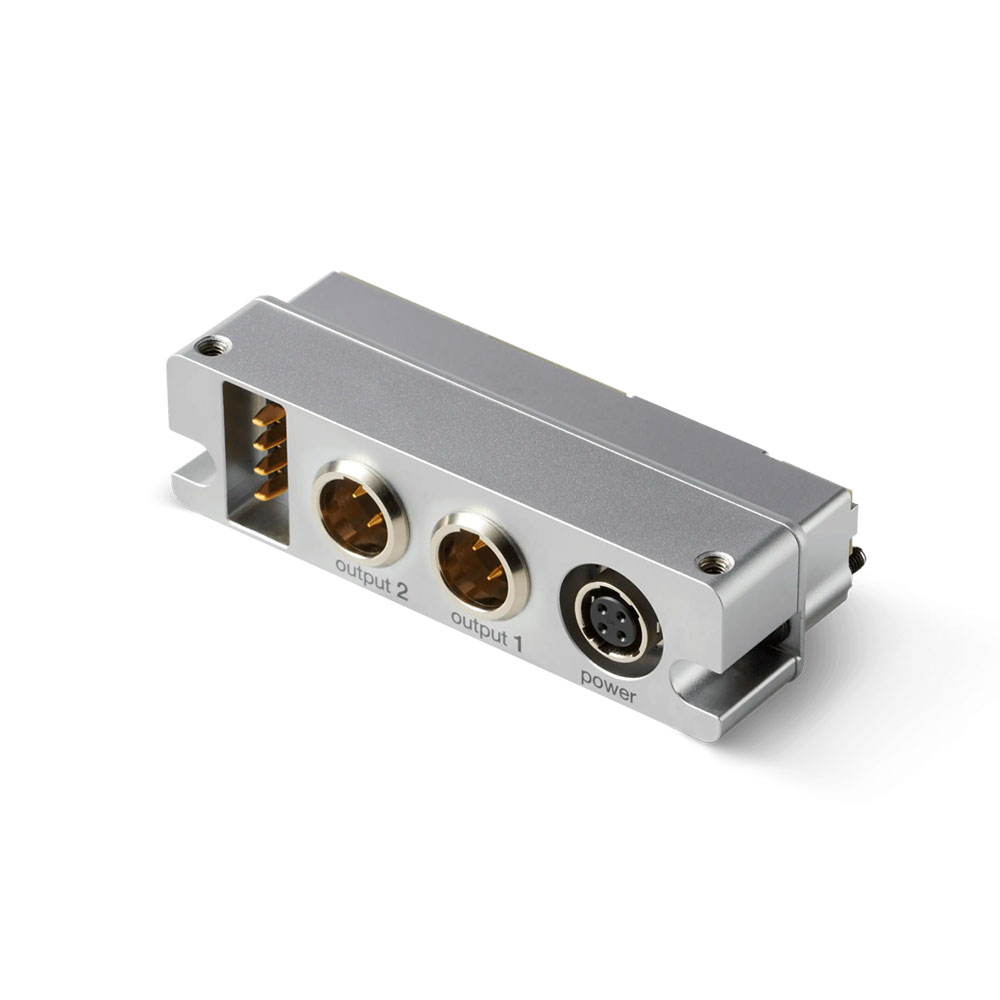

One of the major advantages of the slot-in wireless receiver form factor is that they can be configured for multiple applications, including insertion into a camera or multi-coupler device, or for standalone use where power is provided by a battery distribution system (BDS) or battery sled. The ADX5BP-TA3 Backplate provides stand-alone connectivity for the Axient® Digital ADX5D into professional broadcast cameras, multi-coupler devices, and battery distribution systems (BDS). It includes a 4-pin connector for mating with a Shure battery sled, two TA3 (mini 3-pin XLR) audio output connectors, and a 4-pin locking Hirose power input connector. Captive Phillips-head screws provide simple installation to the ADX5D. Providing two channels of audio output, ADX5BP-TA3 Output 1 and 2 are both analog. However, Output 1 can be configured for digital AES3 output in the device menu (analog Output 2 is disabled when AES3 is selected).

Features

  • TA3 Backplate for the Axient Digital ADX5D dual-channel portable wireless receiver
  • 2 x TA3 analog outputs
  • Output 1 can be configured as two-channel AES3 digital outputs (Output 2 is disabled when AES3 is selected)
  • 1 x 4-pin power connector for battery sled use
  • 1 x Hirose 4-pin power connector
  • Input voltage: 6V DC to 18V DC
  • Captive Phillips head screws provide simple installation to the ADX5D
  • Compatible with the Shure WA451 audio cable (TA3F-to-XLR)
