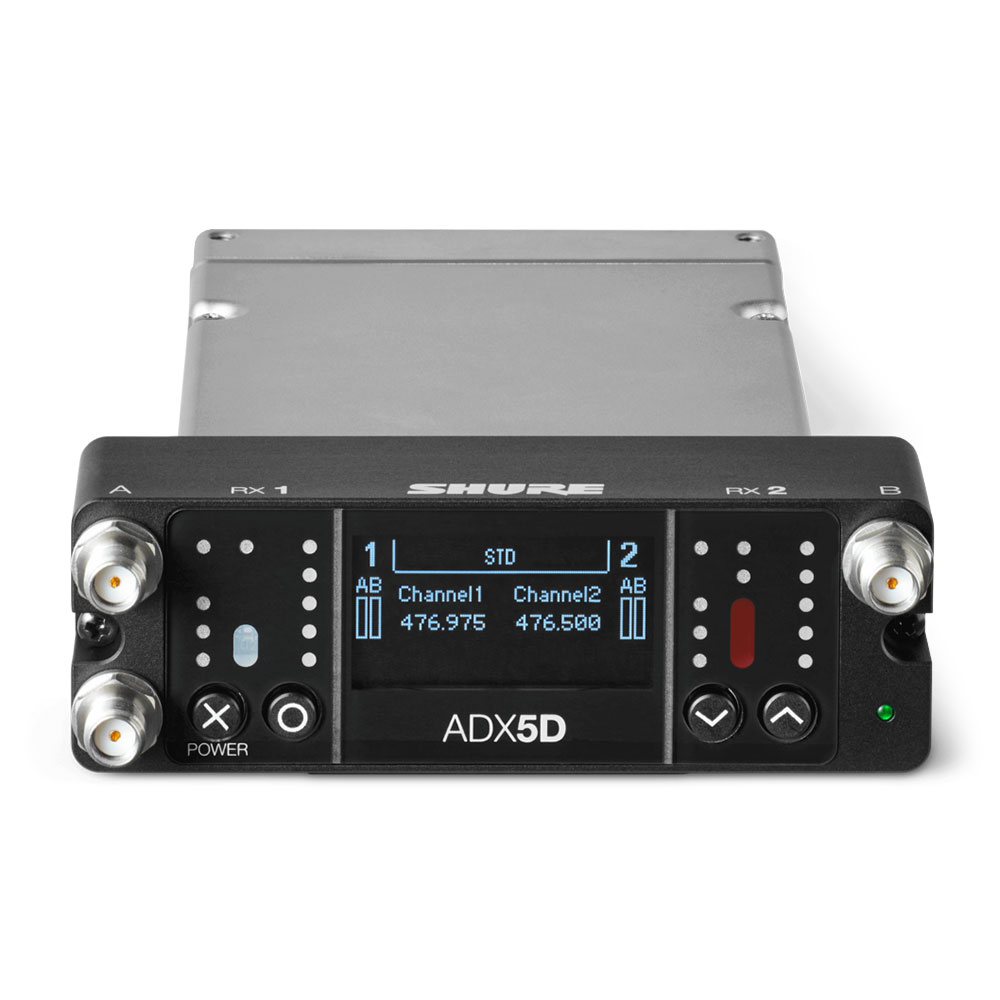

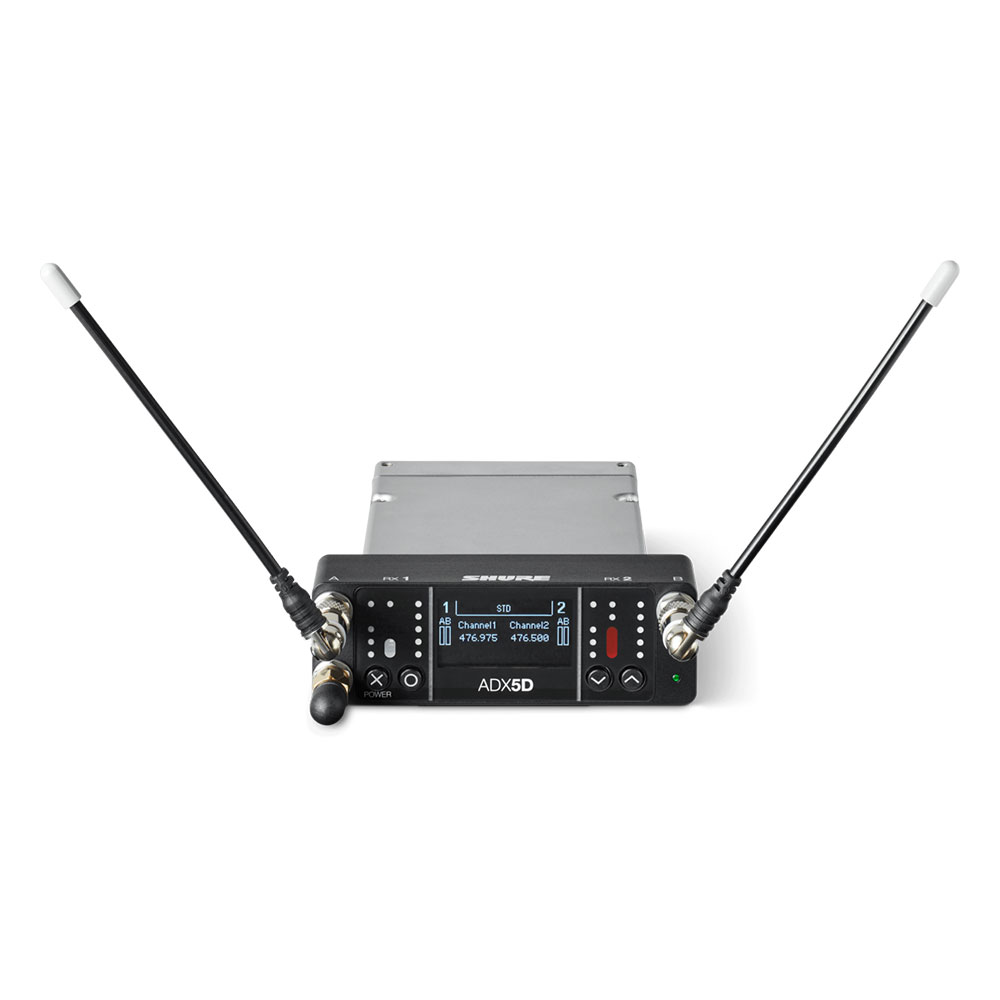

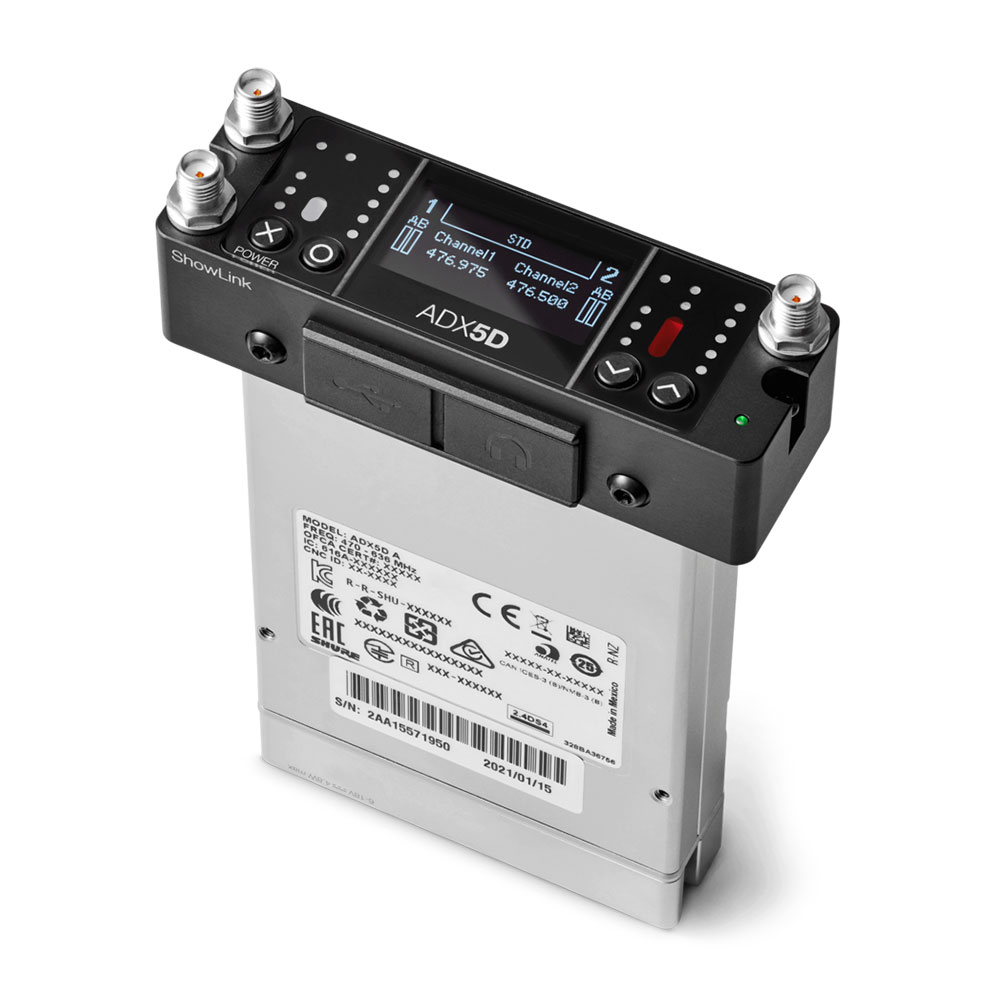

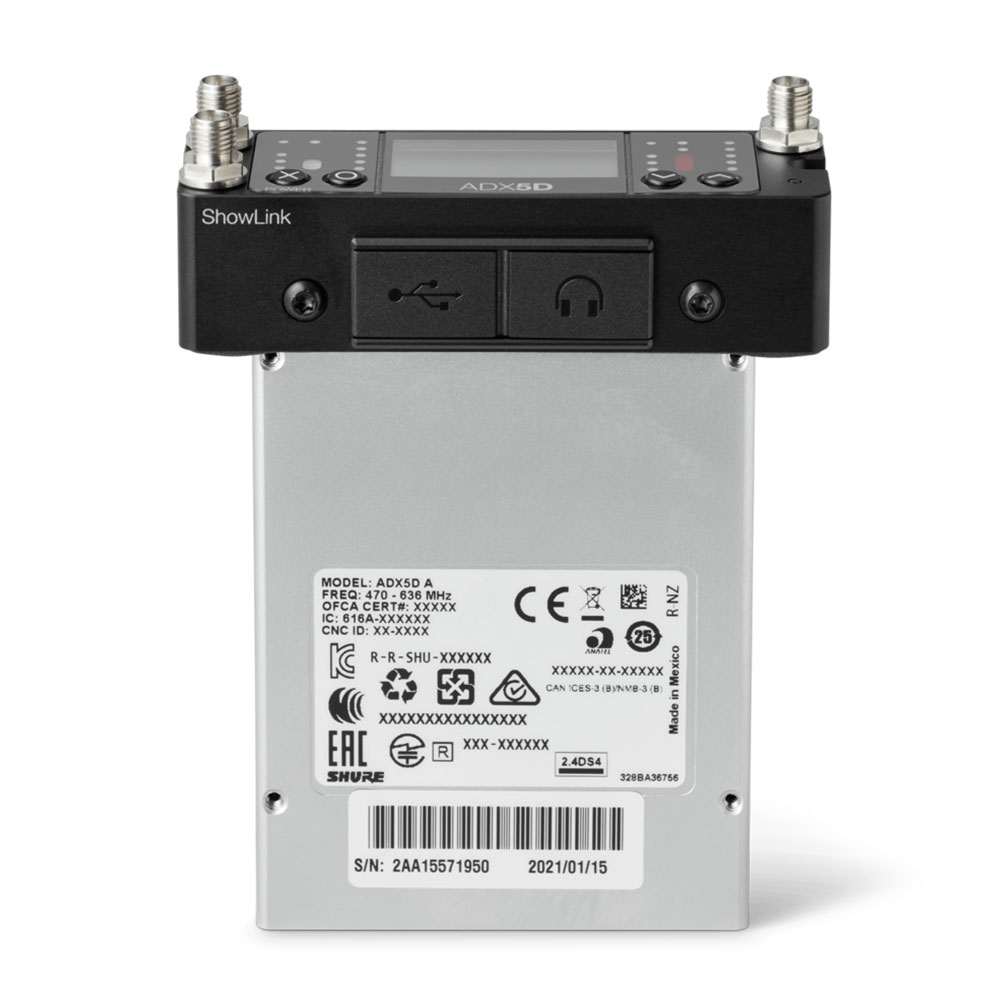

Shure ADX5D Axient Digital Dual-Channel Portable Wireless Receiver

CALL FOR PRICE
Out of stock
Shure ADX5D Axient Digital Dual-Channel Portable Wireless Receiver
Shure ADX5D Axient Digital Dual-Channel Portable Wireless Receiver
Shure ADX5D Axient Digital Dual-Channel Portable Wireless Receiver
Shure ADX5D Axient Digital Dual-Channel Portable Wireless Receiver

Shure ADX5D Axient Digital Dual-Channel Portable Wireless Receiver

CALL FOR PRICE
470-636 MHz
606-810 MHz
925-960 MHz
Out of stock
Brand: ShureModel: ADX5D=-A
+
Key Features:
  • Shure ADX5D: Cutting-edge wireless audio system for professionals
  • Exceptional sound quality & reliability in challenging environments
  • Advanced digital technology ensures interference-free performance
  • User-friendly design with intuitive controls for seamless operation
See More...
S-SHU-ADX5D-A
Information

What's In The Box:


1 x ADX5D Receiver
1 x USB-A to USB-C Cable
2 x UHF Antenna
1 x ShowLink 2.4GHz Antenna
1 x Screwdriver

Shure ADX5D Axient Digital Dual-Channel Portable Wireless Receiver

You make your living on a sound stage, in a sports arena, or wherever “on location” takes you. You depend on your wireless system to handle each and every situation with ease. Compatible with all AD series and ADX series transmitters, the Axient® Digital ADX5D dual-channel wireless receiver delivers superior RF performance, spectral efficiency, and transparent audio quality in a portable, slot-in design. Sound and performance that the touring industry has adopted as industry standard is now available to audio professionals in film and broadcast. Wireless pinnacle. Now portable.

Features

  • Dual-channel slot-in form wireless receiver
  • Impeccable audio.
  • Wide tuning range up to 184 MHz (region dependent)
  • High spectral efficiency due to advanced digital modulation scheme offers more wireless channels in available RF space
  • High Density (HD) mode provides even higher spectral efficiency (application dependent)
  • True digital diversity reception per channel for drop-out resistance and excellent range
  • Networked control with Wireless Workbench® software and ShurePlus™ Channels app
  • 5-segment Channel Quality meters display per-channel RF link quality
  • As an Axient Digital ADX Series wireless receiver, the ADX5D features ShowLink® Direct Mode that allows remote control of Axient Digital transmitters without the need of external equipment.* Robust RF.
  • Third-party integration and control from select portable mixers and recorders for RF scan and deployment, audio gain adjustments, transmitter battery life monitoring, and more.*
  • Party Dial feature enables users to quickly switch between RF channels from a pre-selected group of frequencies
  • Optimised Menu Structure places the most commonly used features within a few clicks of each other
  • Enhanced Shortcut Menu provides rapid access to only a few critical features and menus
  • Aux 3.5mm audio output provide connection to headphones or to a balanced line-level input
  • Accessory Mount with cold shoe adapter (sold separately)
  • Removable antennas with standard SMA connectors
  • High-resolution OLED display
  • USB-C port for firmware upgrades
  • Streamline user interface
  • Low latency, down to 2 milliseconds

The dual-channel ADX5D portable wireless receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environment. As an Axient Digital ADX Series wireless receiver, the ADX5D features ShowLink® Direct Mode that allows remote control of Axient Digital transmitters without the need of external equipment.* Robust RF. Impeccable audio. Axient Digital quality and performance. All in a portable, slot-in design. Premium portable wireless.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

* Country-Specific Functionality Restrictions

  • Interference avoidance is only available in Manual mode when using DB15 or DB25 backplates with United States models
  • ShowLink is not available when ADX5D is used with third-party control devices in the United States models.
Specifications

Specifications

RF
RF Carrier Frequency Range A Band: 470–636 MHz
B Band: 606–810 MHz
C Band: 925–960 MHz
Varies by Region. See Frequency Range and Output Power Table.
Working Range 100 m (330 ft)
Note: Actual range depends on RF signal absorption, reflection and interference.
RF Tuning Step Size 25 kHz
Varies by region.
Image Rejection >70 dB
typical
RF Sensitivity −98 dBm at 10−5 BER
AUDIO
Latency Standard mode: 2.08 ms
High Density mode: 2.96 ms
Audio Frequency Response 20 Hz–20 kHz (±1 dB)
Note: dependent on microphone type
Audio Dynamic Range
A-weighted, typical, System Gain @ +10
XLR Analog Output: 120 dB (A-weighted); 117 dB (unweighted)
AES3 Dante Digital Output: 130 dB (A-weighted); 126 dB (unweighted)
Total Harmonic Distortion
–6 dBFS input, 1 kHz, System Gain @ +10
<0.01%
System Audio Polarity Positive pressure on microphone diaphragm produces positive voltage on pin 2
with respect to pin 3 of XLR output and the tip of the 6.35 mm (1/4-inch) output.
TEMPERATURE RANGE Note: Battery characteristics may limit this range.
Operating Temperature Range 0 to 122 °F (−18 °C to 50 °C)
Storage Temperature Range −20 to 149 °F (−29 °C to 65 °C)
NOTE: This Radio equipment is intended for use in musical professional entertainment and similar applications. This Radio apparatus may be capable of operating on some frequencies not authorized in your region. Please contact your national authority to obtain information on authorized frequencies and RF power levels for wireless microphone products.
